NetTalk WebServer - The Basics

Introduction

The goal of this document is to show you how to use the NetTalk NetWebServer class to create an interface in your program, that can be accessed by a user using a web browser. We have tried to write this from the point of view of a programmer who has never done web programming before. So some of these concepts may seem trivial to you.

Before you can begin writing a Web Server, there are some general ideas and concepts that are worth understanding. This document will cover the basics, as well as discuss some NetTalk specific conventions and features. Other documents will cover each of these items in more depth, the goal here is not to cover every possibility, but rather to get a good grounding in what is available.

The NetTalk Web Server is provided as two layers. The first layer is the NetTalk Web Server classes. These classes are the foundation of any NetTalk web server program.

The second layer is the template framework. I need to stress that this framework is not prescriptive in the sense that this is not the only way to build your web server. It is offered rather as a particular way you may want to build your server. We have found it very useful when coding our own web applications, however you will need to evaluate it carefully to see if it meets your needs.

The best way to learn the class layer in more detail, is probably to start by using the template framework layer. Once you are comfortable with that, and how that works, then you can experiment a bit with different approaches. One positive aspect of the template framework is that you can use all of it, some of it, or none of it, depending on what you prefer. You can also mix “hand-coded” pages with template pages without any problems.

There isn’t a lot of structure in this document, many different and varied topics are discussed. We recommend reading through this document as you would a book. If you’re not 100% sure about something then skip over it for now and keep reading. Later on, especially once you’ve built a couple applications of your own, much of it will make sense.

We recommend returning to this document from time to time as the understanding of it will grow as your experience grows.

Acknowledgements

There is no point in re-inventing all the really cool features that are currently available to web developers. What we’ve done is integrate the ones we really like into NetTalk. A full list of the scripts, their owners and licenses are included here. Our grateful thanks go out to all the authors involved in these projects.

If you find scripts that you think should be integrated into NetTalk Web Server, and if they are suitably licensed, then please let us know. No promises, but we’re always open to suggestions.

There have been numerous dedicated web developers who have fed me more bug reports, and feature suggestions than I could possibly handle. You know who you are. My thanks to you all.

The Web is a different country, and things are done differently there…

Traditionally in striving to make web development for Clarion programmers as simple as possible every attempt has been made to hide the differences (between Win32 programming and web programming) from the programmer. However for some of the other Clarion web options available in the past this has lead to inefficient models, which sooner or later result in programmer frustration. We hope to avoid this problem, and so at some times the differences between web and win32 become visible.

Thus understanding some of the crucial differences is important to understanding how the server works, which in turn leads to easier programming.

Before we start discussing how to build the web server using NetTalk, we’d like to take a moment to highlight some of the differences between a Win32 application, and a web application. We’ll also cover some basic web server/web browser concepts.  You’re probably aware of some of these, but they’re worth mentioning again.

Caveat: Some of the statements below are untrue. Like the way that saying "the world is round" is untrue. In some cases details that are unimportant to the point being discussed are either ignored or conveniently forgotten.

Web Browser / Server Interaction

A web browser is an incredibly simple beast. A Server is even simpler.

Despite all the really fancy things you’ve seen web pages do, underneath the skin the Browser and Server follow very simple ideas. So simple in fact that most often people are left asking “is that all?”

A web browser can only do 3 things:

1.        GET a page from a server.

2.        POST information to a server, accepting whatever page the web browser sends in reply.

3.        Display the page.

On the other side all a server does is:

1.        Respond to a GET by loading that file off the disk and sending it to the browser.

2.        Respond to a POST by doing “something” and loading a file off the disk and sending it to the browser.


This is remarkably simple, yet at the same time remarkably powerful. But not, as it turns out, powerful enough.  In order to make it more powerful a small, subtle, change was added on the server side.

1.         Respond to a GET by loading that file off the disk, parsing it, and sending it to the browser.

2.         Respond to a POST by doing “something”, load a file off the disk, parse it, and send it to the browser. OR

3.         Respond to a GET or a POST by generating a page dynamically, and returning it to the browser.


The server-side power, sometimes called server-side-scripting is in the small Parse step above. Note that the client does not see the unparsed page. As far as the client is aware the page came off the disk just like that.

Of course for the parsing to be useful, the page needs to contain instructions that the server understands. Thus if your server is IIS you can use ASP instructions. If your server is Apache then PHP is ideal. The NetTalk web server uses its own special tags – and we’ll cover those in more depth in a moment.

The Browser Interface is Limited...

This is the most obvious statement of all. The set of native controls available in a browser are quite poor. This is both a positive thing (you are forced to redesign your interface to reduce complexity) and a negative thing (you can get fancy, but only by using client-side tools, like JavaScript).

The immediate temptation is to spec your Browser interface to have all the bells and whistles of the Windows interface. Before you go too far down that road, I recommend making your first iteration of the site as “clean” as possible. Start by making the site work. Then work on making it slick. One big plus in using templates is that changing basic behavior on a global level is not too difficult.

...But not as Limited as you Think

Most customers, and most developers dismiss web programming as providing exceptionally poor performance and usability to the user. A decade of bad web apps have convinced developers that the fundamentals of the web itself do not allow for good quality applications. This belief is just wrong. The web is capable of highly interactive, highly responsive applications. It's not the same as the desktop, that's true, but the abilities of the web go far beyond what most web apps aspire to.

Ajax / Web 2.0

You may have heard much recently about the so-called Web 2.0. Or you may have heard of the term AJAX. You may also know that both of these items are very loosely defined, and seem to apply to a broad spectrum of functionality rather than any one specific thing.

The NetTalk Web Server uses AJAX techniques in many of the templates that are provided. However the mechanics of this are completely invisible to you the programmer. If asked, yes, your application uses AJAX.

Fancy though this may seem, it’s ideal if your client does not notice that your site employs the latest, greatest technology. Frankly he probably doesn’t care about the technical details. (And to some extent, neither should you.) AJAX techniques are not impressive to end users because they accomplish things that have been happening in Windows programs for over 10 years. Getting those effects in a browser may impress the techie in you, but don’t expect your customers to leap with wild unabandoned joy.

The Web Browser Interface has its own Navigation

Although the web browser “Back” and “Forward” buttons can be hidden, the user can still do these options by right-clicking on the page. When a user does this no request is sent to the server. The browser simply changes page without the server knowing. Thus for the server to attempt to know “where” the client is, is useless. The client browser may be literally anywhere in the program at any time.

To make matters worse, clients can “bookmark” a page and return there at any time in the future. They can type any URL into the address bar at any time. They can abandon a form, or indeed your whole site, without letting you know.

In short, the navigation around your web application is a lot more fluid than the fixed navigation around a Windows application. This has an effect on the way some things are constructed, and some items (which may seem strange at first) are designed to cope with this issue.

The Web Browser Interface is Stateless

The most basic concept of a program that you have deep in your subconscious is that a program is stateful. By that I mean it not only always knows “where” you are, but if you depart (for example to a lookup) you can always return, and local variables will be as they were when you left them. Consider the following situation (in regular Windows programming):
  1. You are on a menu, and you click on the Employee Browse button.
  2. Up pops the employee browse.
  3. You enter a locator and jump to the people starting with J.
  4. Clicking a lookup button, you select the date range for when the employee was hired.
  5. Returning from the date lookup, you notice the J employees are still located.
  6. Highlighting an employee, you click on Update, change the phone number and click Ok,
  7. and go back to the Browse.
  8. The J’s are still located, and the date range is still as you left it.
  9. This is all so normal you don’t even notice it.

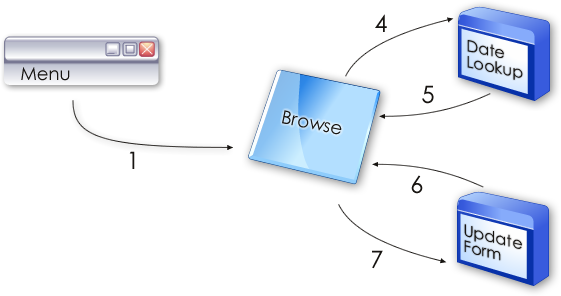

This scenario can be drawn something like this:

Flow Chart

The sequence shown above is so basic it’s almost the first thing you learned when you were programming. It’s so basic that you’ve forgotten it even exists. That’s simply how things are.

If you like, take a moment now to consider what you’d need to do if the following restriction was added to your programming language:

“Only 1 window can be open at a time – If you make a call to 1 procedure, you must at the same time, close the existing procedure.”

In web programming, specifically stateless web programming, that’s exactly the restriction that is added. Actually it’s slightly worse than that, but we’ll get to that in a minute.

The browser, as a client-side tool, has absolutely no idea where it is in the program. And the server sees each specific request (from the browser) in isolation. In the windows program above, the lookup, and form, knew to return to the browse when done. The range and filter set on the browse did not change simply because we went to the form.

Let’s consider the same set of actions as seen by a web server.
  1. The user goes to the menu.
  2. Clicks a button which goes to the Browse. (The menu closes.)
  3. Enters a letter, and goes to the Browse (The original browse closes.)
  4. Clicks the lookup-date-button and goes to the calendar screen. (The browse closes.)
  5. Clicks the OK button and goes to the Browse. (The lookup closes.)
  6. Clicks the update button and goes to the Form. (The browse closes.)
  7. Clicks the OK button and goes to the Browse. (The form closes.)

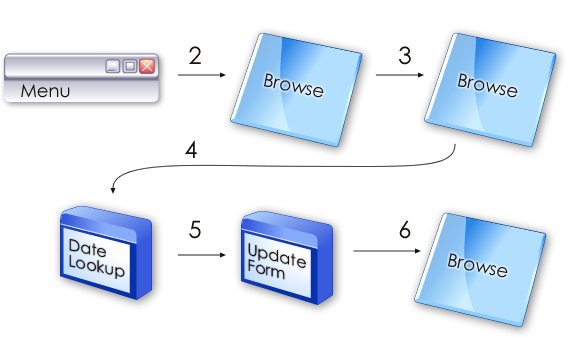

Drawn, it looks like this.

flow chart

Notice that in a web server program, you never go back. In the description and picture above you never go back to the browse. You always go forward to the next browse.

In a purely stateless world, the date lookup would clear the locator. The Form edit would clear the locator and the date filter. Not surprisingly programs written in a purely-stateless world are extremely limited (at least for what we’re trying to do.)

The solution to this issue always falls into one of the following 3 approaches;

1.         Store variables in the browser, as cookies. This works as long as the data being stored is very limited, and as long as the user has cookies turned on.

2.         Pass all the necessary variables from one page to the next on the “command line” ie as part of the page address. While workable, and infinitely scalable (from a number-of-servers point of view) there are limits to the length of the command line.

3.         Create a “session” on the server. Store all the variables inside this session. All you need to know is what Session belongs to the client (which is passed in a cookie), from this you can set appropriate default values onto pages being delivered. This is the primary approach taken by NetTalk.

Probably the closest equivalent is writing a program where there are only global variables, and procedure parameters, but no local variables.

Unfortunately with web programs there is one more wrinkle. There may be more than 1 user accessing the same program at the same time. Each user needs his own variable space. For this reason we use a Queue, and hence we talk about the SessionQueue.

[Aside: Later on we’ll see that this may not be a Queue at all, but that’s not important right now. Think of this big variable storage area as a Queue.]

Sessions

The single biggest difference between a Windows program, and a Web-Program is the issue of persistence.  In a Windows program one person is running a copy of the program, and that copy belongs to them. When they’re done they close the program. With the web there’s only one program, being shared by many users at the same time.

This would be fine if each page was completely independent of each other. But in even simple programs this is not the case.

In order to maintain the state of all the server-side variables for each user, the idea of a Session is used. As long as the user keeps passing their session number with each request then the server is able to keep track of the user. In NetTalk the session ID is passed as a cookie with each request, so the mechanism for this is completely invisible to you.

Internally the settings (variables) are stored in a Queue, called the Session Queue. You can also use the Session Queue yourself to store your own variables for each user. There are methods to read and write values in the Queue.

Parameters (Values)

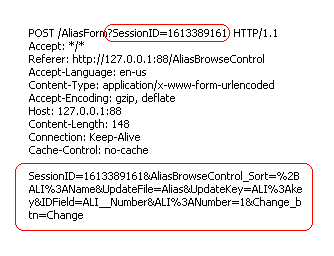

When the Browser asks for a page, it is also possible for it to pass parameters to the server. If the request takes the form of a GET then the parameters appear in the URL. In the log you can see them here:

When the request takes the form of a POST can appear in the URL, or they can appear below the header. In the log they look like this:

Regardless of whether the request is a GET or a POST, all these values are automatically parsed for you and placed in the Value Queue.  If a value appears in both the POST section, and the URL then the URL value takes precedence. (If a cookie exists with the same name, these overwrite the cookie value in the Value Queue.)

You can use the method

value = p_web.GetValue('name')

to get the current value, and

p_web.SetValue('name','value')

to set the value to a specific value. To determine whether a value exists use

p_web.IfExistsValue('name')

These settings are only available during the course of this thread. They are not (by default) stored for use in other threads. If you do want to save them, then be sure to write them into the SessionQueue.

As we'll see later this is an important point. Indeed in most cases, should you need to work with a value directly, all you should be doing is storing it in the session queue. Then in all other places in your code you use only Session Queue data. The method to store a value is

p_web.StoreValue('name')

Cookies

Warning: Some people turn the cookies functionality off for various reasons. NetTalk depends on the cookie mechanism to pass the Session ID with each request. The use of cookies though should be used sparingly. There are very few cases, outside the Session ID, and possibly login information, where cookies are actually required. Data should be stored on the server, not the client.

A Cookie is a value, sent by the browser. This value is attached to all GET's and POST's which you receive from the browser. Incoming cookies are automatically parsed for you, and added to the Value Queue.

In order to set a cookie in the Browser you use the

p_web.SetCookie('name','value')

method.

If used like this then the cookie will be valid in the browser for as long as the browser is open, but will then be discarded. To make the cookie more permanent you need to set the date, and optionally the time, when it will expire.

p_web.SetCookie('name','value',ExpiryDate,ExpiryTime)

The ExpiryDate and ExpiryTime are standard Clarion Date and Time fields (ie LONG's). Note that the time and date are relative to GMT time, not the time of the browser, or the time of the server.

To delete a cookie currently being stored in the Browser use the DeleteCookie method

p_web.DeleteCookie('name')

Note that cookies can only be accessed by the site that "wrote" them. It is not possible to access the cookies placed in the site by another browser.

Example 7 contains an example of using cookies. In this example the LoginForm procedure saves the value of the login and password fields, for 30 days, so if the user returns to the site the login is "remembered".

There is no need for special functionality to "Read" the cookie. All the cookies that belong to a site are sent automatically by the browser with every single request. These are automatically placed in the Value queue for you so you can read them using the normal p_web.GetValue('CookieName') syntax.

Remember though, there are almost no cases where a cookie is the right solution to the problem. In almost every case where you think you might need a cookie, the Session Queue, or a User Data Table is a better place to store the data.

Tip: Cookie names, like all HTML field names cannot contain a colon. However if the name contains a double-underscore, then that will be translated into a colon by GetValue. For example;

p_web.SetCookie('Loc__Login','NetTalk')
would be accessible using
p_web.GetValue('Loc:Login')

Session ID Cookie Name

The SessionID cookie is a built in cookie that allows each request the user makes to be linked to their session. This is done automatically and you do not need to do anything. With very few exceptions this is ideally the only cookie your app should make use of. Any other user settings can be set at the server side in Session Values.

Up to NetTalk build 9.23 the default name for the session ID cookie is SessionID. This name was used for both secure, and insecure sites.

From build 9.24 this default name is SessionID for HTTPS connections, but SessionIDx for non secure connections. This allows both secure, and insecure sites to exist on the same domain. This is necessary because starting from Chrome 52 and Firefox 52 insecure sites can no longer overwrite existing cookies for secure sites.

Should you wish to you can override the name of the cookie. This is done in the web handler procedure, in the SetSessionIDCookieName method. At this point in the code you can test self.SSL to see if the connection is secure or not. It is recommended that you use different names for secure, and insecure sites.

Having a unique cookie name for secure and insecure parts of the domain means that sites that are intentionally mixed may have limited functionality.

JavaScript,CSS and HTML

Browsers understand 3 languages, and none of them are Clarion. ul>
  • HTML is the "Markup language" - this contains the Structure of the document. HTML is made up mostly of <tags> which describe the structure of the text being displayed.
  • CSS is the "Visual language" - this determines what the page looks like, and (some of) the page layout.
  • JavaScript (which is Not Java) is a programming language with variables, and loops, and things like that, which is able to manipulate both the HTML and the CSS on the page.
  • As a NetTalk developer you do not need to know any of these languages in order to get started. However you will find yourself picking up HTML as you go, and likely learning CSS as well. More advanced developers will also start using a line or two of JavaScript in strategic places.

    Your NetTalk app will make use of all three languages, by generating HTML, and by including the default NetTalk CSS and JavaScript files.

    NetTalk includes, the jQuery JavaScript library. jQuery contains some fantastic JavaScript code, which we use as a building-block, and also some UI components that improve the user interface of your NetTalk site. It also contains a "standard" theme, based on a system called ThemeRoller, which allows for easier changes to the CSS files. jQuery is also a "pluggable" system with a large number of plugins already available on the web.

    Unique,Unchanging Keys

    With the NetTalk WebServer we’ve tried to place as few limits as possible on the programmer. We like flexibility ourselves, and we appreciate it in the tools we use. But every now and then we need to impose a condition simply because without it the system will not work.

    As far as your tables goes, the NetTalk Web Server requires tables to have at least 1 unique, unchanging key. This is so that records that are used in one place, and have to be reloaded in another, can be properly identified.

    Consider for example a Form. When a form is opened, so that a record can be changed, the record is read into memory, and displayed in the web page. Then that thread finishes. Later on the user clicks Save (after editing some data). At that point the original record is reloaded, the changes applied, and the record is saved. But the system needs to know which record was being edited in order to do this. If the user were allowed to edit the very field used to identify the record it could not then be reloaded.

    If you had the luxury of going to University you’ll probably already have this key. Good database design courses teach this approach anyway as a pre-requisite to having a good database design.

    If you don’t have a unique, unchanging key then you can add one to your tables. Set the key as AutoNumbered, and forget about it.

    If you are using the CapeSoft Replicate product in your dictionary then you’ll already have a non-changing unique key in the GuidKey that Replicate requires. You can use this key as your unique key in NetTalk WebServer.

    A Moment in Time

    The Server interacts with the browser in a very specific way. The Browser makes a GET or a POST (as we saw above). The server responds by providing a web page. Once that’s done (typically taking a small fraction of a second) the server then forgets all about the request. During that time there may be instructions to copy items in, or out, the Session Queue, but once the page is delivered it is immediately forgotten.

    Of course the Browser doesn’t forget. It displays the page to the user for as long as the user likes. The user then clicks a button, or a link, and another POST or GET is sent to the server. For another brief instant the server awakes, does some work, and forgets.

    This is a very efficient approach because there are no resources (no RAM or CPU) on the server being used for the time the user spends staring at the screen. Thus supporting many users “at the same time” is not a big problem, because each request uses the server resources for a very brief period of time. Compare this to the WebBuilder, or Terminal Server approach of having a complete copy of the program, in memory, for every single connected user, for the duration of their entire session from start to finish.

    I cannot stress this enough - There is no "connection" between the Browser and the Server. This is why it is impossible for the server to "push" information into the browser. The browser makes a request, gets a reply, and the connection is severed.

    Threads

    Every time the user does something (clicks a link, clicks a button, etc) a request is sent to the server. Each request processed by the server is done on its own thread. In other words;

    a.         A request arrives at the server'

    b.         A new thread is started to handle the request'

    c.         The thread immediately performs any actions, and sends a page back to the browser'

    d.         The thread ends.

    Thus unlike a windows program, the lifespan of each thread is very short.

    The Web Server is capable of managing multiple requests simultaneously.

    Thread Pools

    By default each incoming thread is processed on its own thread. The request comes in and the WebServer starts a thread for the WebHandler. The WebHandler then processes the request, and returns the reply. The thread then ends.

    In a normal application the "cost" of starting and ending the thread is very small. So this approach is both simple, fast and effective. However the time it takes to start the thread is proportional to the amount of global threaded data and objects that you have. The biggest part of the data is of course the number of THREADed tables in the dictionary.

    Therefore in some apps the cost of starting and ending threads becomes significant. To overcome this problem a feature called "Thread Pooling" exists.

    Please Note: Thread Pooling cannot be used in the Multi-Site host application. If an application is used as a DLL to the Host, then the thread-pooling features there will be ignored.

    The idea is that instead of closing when the request completes, the thread hangs around for a bit. If another request comes in then the WebServer can pass the request to the existing thread, instead of having to create a new thread. If the thread is not used for some period of time then it quietly closes in the background.

    To make use of thread Pooling virtual no changes need to be made to the app. All that has to be done is;
    a) The creation of a WebHandlerPoolThread procedure and
    b) The activation of the feature in the WebServer procedure

    Create the WebHandlerPoolThread procedure

    This is a simple window procedure, with the window MDI attribute OFF. No controls are required on the window.
    The prototype for the procedure should be;

    (string p_PoolNumber,string p_waiting, string p_server)

    Add the NetTalk Extension, WebServer Pool Thread Window to the procedure.
    Set the name of the Handler Procedure (typically WebHandler) in the extension properties.

    Activate Pooling in the WebServer procedure

    Two settings for the thread Pooling can be found in the WebServer extesion, Performance tab.
    The name of the WebhandlerPoolThread procedure, and the maximum number of pool threads can be entered here.

    If all the pool threads are busy then an additional pool thread is started until the maximum number of pool threads is reached. After that individual threads (up to the maximum allowed number of threads) will be created in the usual way.

    Services

    IIn Windows a program usually runs only after a user has logged in. However if you are creating a Server program then typically you want it to run before a user logs in. (For many servers, no user logs in at all unless there are other tasks to perform.)

    Services can be made in Clarion 5.5 and earlier, but they are not reliable and cannot be multi-threaded. Which means they’re pretty useless in the real world. In Clarion 6 you can turn any program into a service, either by using the Windows 32 API, or (if you’re lazy like me) by using a template. Not surprisingly we recommend SelfService (https://www.capesoft.com/accessories/selfservicesp.htm) for making services./p>

    Frames or Not

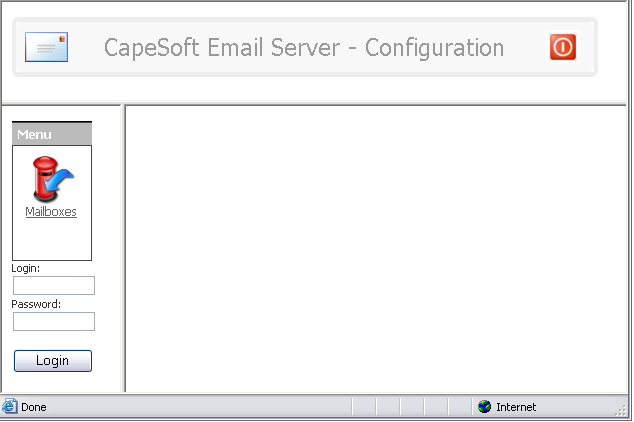

    One of the first decisions you’ll need to make is if the site is going to use Frames or not. This is a key starting point, because this will determine the way you build the site.

    It is of course possible to make a site that works using both Frames or No-Frames, but that is extra work, so start with one approach, and add the other approach necessary if you want to.

    Frames allow you to divide the visible window (in the browser) into different “panes”. Each pane can then be updated individually, and one pane can change another.

    The primary disadvantage with frames is two-fold.

    a.         Search Engines struggle with them, and

    b.         The address bar in the browser stops working when you have frames.

    If your site is designed to be used as a program, with a login and then the ability to do stuff then Frames are good.  If your site is going to be a public site, and you want Google to search it then don’t use frames.

    Sites without frames however are also a bit more flexible when it comes to layout, and give the programmer somewhat greater freedom when it comes to doing stuff. Personally I've moved away from using frames to building apps that do not use frames.

    TLS

    In the web world there are 2 kinds of servers. Secure servers, and non-secure servers. If you are transferring information between the server and the client that you want to protect (and almost all web apps fall into this category) then you want your server to be secured using TLS.

    This is a topic that is very simple on one hand, but also can get bogged down in details very quickly. NetTalk allows you to build Secure servers, non-secure servers, and servers which do a combination of both.  This is discussed in detail in the document Building Secure Web Sites.

    Template Overview

    A very quick overview of a typical NetTalk app is useful here. Each of these parts is discussed in more detail in a moment.

    1. Each web server app has a WebServer procedure and a WebHandler procedure. These handle the incoming responses.

    2. The app may contain static htm pages stored on the disk.

    3. The app may contain one or more NetWebPage procedures, which generate a complete HTM page on demand. You cannot embed one Page inside another Page.

    4. The app may contain one or more "Control" procedures. These are things like browses and forms. They can be embedded on a page, or they can be called directly as a page.

    5. The app may contain one or more "Source" procedures. These can be embedded on a page, but not called directly as a page.



    WebServer Procedure

    Each WebServer you create will listen on a specific port. The default port for web servers is 80, but only one server can be listening on a single port at a time. If you are making a general purpose site, one aimed at the whole internet community then of course you will need to run on port 80.  If you are making a non-internet server (for example, you’re just making a way to access your program across the network) then you can use your own port number. Port numbers above 1000 are generally considered to be “open”.

    The default port for Secure servers is 443. However any port can be secure.

    An app may contain multiple web servers. Each Web server listens on a single port, but as a whole the app is listening on multiple ports.

    The WebServer procedure is the procedure that listens to the open port. In the examples it’s always called WebServer, but the name is not fixed – you can call it anything you like. Obviously if you have more than one then they need unique names.

    The WebServer procedure consists of a Window procedure, to which is added one or more NetTalk Objects. These objects are set to the NetWebServer base class. Some settings for the server will appear on the settings tab. The details of each setting is discussed in the reference document.

    The WebServer procedure listens for incoming requests. For each request the WebHandler procedure is called, on a new thread. The name of the WebHandler procedure for this web server is set on the Settings tab.

    In NetTalk the multi-site Host application was introduced. This allows a single server to share port 80 between multiple apps. For more information see the document here.

    WebHandler Procedure

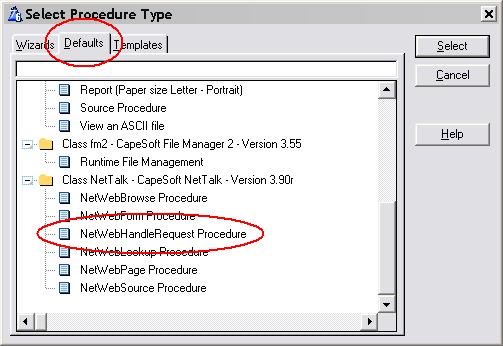

    The WebHandler procedure is based on the NetWebHandleRequest procedure template. When adding this procedure it is recommended to use the NetWebHandleRequest Default .

     default tab screenshot

    The WebHandler procedure will become a good place to embed some code later on, but for now there’s no hand-code necessary here. There are also no template settings of any note in this procedure.

    Each web app will contain at least 1 WebServer procedure, and at least 1 WebHandler procedure.

    Many WebServer procedures can share the same WebHandler procedure.

    Many NetWebServer objects can share the same WebHandler procedure, even if some of the NetWebServer objects are secure, and others are not.

    Legacy Templates

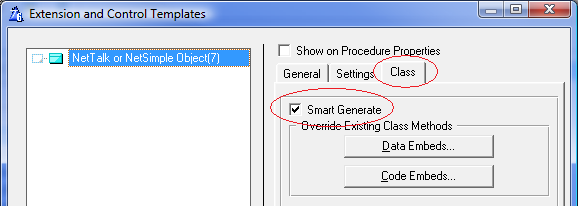

    In order for all the Web Server features to work correctly, you need to make sure that the Smart Generate feature in the Web Handler procedure is turned on.

    Web Hander procedure, Extensions, NetTalk or NetSimple Object Extension, Class Tab, Smart Generate option.

    NetWeb Page

    A NetWebPage is the basic structure that starts each web page. On this page you can place your own HTML code, menus, Browses, Forms and so on.

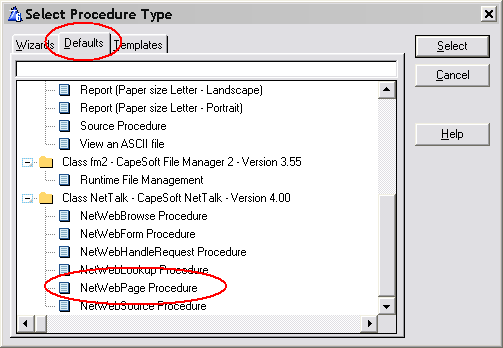

    To Create a new page use the NetWebPage Procedure Default.

    Each page has a number of settings which are described in the Reference document.

    To a Web Page procedure you can attach one or more extensions. These extensions include:

    NetWebFrame - Frame Extension

    NetWebBoder - Border Extension

    NetWebMenu - Menu Extension

    Each of these extensions will be discussed in more detail in a moment.

    Using HTML you can describe the content of the page, including other NetWeb controls (such as Browses and Forms.)  You can also embed custom HTML source, from other procedures in your app (procedures based on the NetWebSource procedure template.)

    It should be noted that you cannot embed another page on this page.

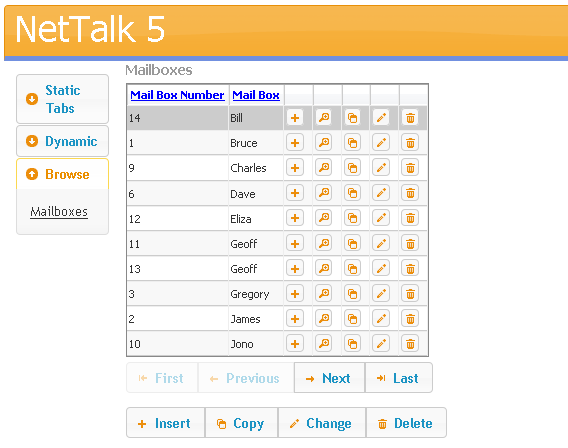

    An example of a simple NetWebPage can be found in example 1.

    In this example the IndexPage procedure contains the following HTML;

    <!-- Net:PageHeaderTag -->
    <!-- Net:MailboxesBrowseControl -->
    <!-- Net:PageFooterTag -->

    Essentially this page is made up of 3 parts. Each part is constructed by a separate procedure in the app.  Using the NetTalk tag system procedures can be embedding on the page.



    Tags

    A NetTalk Tag is basically a wrapper around some variable, or procedure, that you want to include at this point in the page.  It takes the form

    <!--Net:Something -->

    In this case that Something are procedures, so the HTML generated by those procedures are included on the page.

    If the Something is not a procedure, then it might be a session variable. For example you might have a session variable and you can include that on the page. You’ll see a lot of this happening as you progress through the examples.

    Static pages (usually .htm pages on disk) that contain tags have to be parsed by the server. If you use a static page on the disk these tags can still be used. However in that case the first line of the page must be

    <!-- NetWebServer -->

    It's important to note that you can put any tag you like into your web page, as long as you handle it in the ProcessTag method in the WebHandler procedure. However there are some built-in Tags which you can use without having to add code to the WebHandler procedure.

    1. <!-- Net:FunctionName -->

      This tag will call the specified function in that point in the code. This can be a function based on any of the NetWeb procedures. (Note: Not all the procedures make sense at every point though.

    2. <!-- Net:s:SessionVariable -->

      This will embed the current contents of the session variable on the web page. If the variable should be formatted (for example a DATE field) then make sure the Picture parameter of the session variable is set using either
      p_web.SetSessionValue('name','value','pic') or
      p_web.SetSessionPicture('name','pic')


    3. <!-- Net:v:Variable -->

      This will display the current contents of a Parameter at this point in the web page. In other words the same as (2) above, but uses the Value queue, not the Session queue.


    4. <!-- Net:f:FileName -->

      Includes a (html) file at this point of the web page. Similar to the Clarion "INCLUDE" command. Use this to include static bits of HTML, stored in static files on the disk, inside dynamic web pages.
      Tip: If the file contains raw text, not formatted HTML, then you can wrap the tag with the <pre> Html tags. For example

      <pre>
      <!-- Net:f:disclaimer.txt -->
      </pre>

      The file itself should be placed in the Web folder. It can be in a sub folder, but then the filename should contain a web-relative path. for example;

      <!-- Net:f:/loggedin/header.htm -->

      The encoding of the files can be complicated. Assuming your site is serving pages as utf-8 (which it should be doing) then ideally your files are also encoded as utf-8. Unfortunately there is no way to reliably detect if a file is encoded as ANSI, UTF-8 or UTF-16. Therefore NetTalk has to guess the format (to determine if conversion is necessary.) There are however techniques which you can use to make the guessing more accurate. The order of the assessment is as follows;

      A. If the file has a byte-order-mark then that will be used to know is is already in utf-8 or utf-16 format.
      B. If the file starts with the text;  <!-- utf-8 --> , then it is assumed to be in utf-8 format.
      C. If the file starts with the text;  <!-- utf-16 --> , then it is assumed to be in utf-16 format.
      D. If the file contains the text <meta charset="UTF-8"> then it is assumed to be in utf-8 format.
      E. If the file contains the text <meta charset="UTF-16"> then it is assumed to be in utf-16 format.
      F. If the second, and fourth characters in the file are CHR(0) then it is assumed the file is in utf-16 format.
      G. If all the above are not true then the file is assumed to be in ANSI format.
    5. <!-- Net:x:SessionVariable -->

      This is exactly the same as a session variable, except that the contents of the variable will not be xml encoded. Use this when you expect the session value to contain actual HTML code (which you want the browser to see as actual HTML code.) In this case however you are required to make sure the contents are actually xHTML compliant.
    6. <!-- Net:h:HostVariable -->

      Host variables are like session variables except that they are "global" to all sessions. For more information on host variables see Host Variables.
    7. <!-- Net:d:something --> Tags

      The d: tag allows you to access various current date and time values and include them in html.  The following identifiers are recognised;
      tagmeaning
      <!-- Net:d:today-->Display today's date, format using  p_web.site.datepicture.
      <!-- Net:d:clock--> Display the current time, using @T4 as the format picture.
      <!-- Net:d:day--> Display the day number in the month
      <!-- Net:d:month--> Display the number of the current month in the year
      <!-- Net:d:monthname--> Display the name of the current month (January, Feburary and so on)
      <!-- Net:d:year--> Display the current year value.
      <!-- Net:d:dow--> Display the day number in the week, (Sunday=0, Monday=1 etc.)
      <!-- Net:d:weekday--> Display the week day name, Monday, Tuesday and so on.
      <!-- Net:d:dayname--> Display the name of the day of the month, eg 1st, 2nd, 3rd, 4th and so on.
      <!-- Net:d:hour--> Display the current "hour" part of the time.
      <!-- Net:d:minute--> Display the current "Minute" part of the time.
      <!-- Net:d:second--> Display the current "second" part of the time.

    A good example of embedding browses and forms in static pages is the appropriately named Pages (47) example.

    See also

     Host Variables

    FrameSet Extension

    The Frameset extension allows you to create the frames that your app will run in.

    Before making use of the FrameSet extension you need to decide if your site will be using Frames or not. See the section above entitled Frames for more information on making this decision.

    A good example of the use of Frames is Example number 4 – “Frame with Menu”.

    Frames, as an HTML concept, are both simple, and complex. There is no easy way to give you the power in Clarion, without also giving you some complexity, so this is by far the least intuitive of the extension templates. Taking a moment to understand frames is a good idea if you want to use them.

    A FrameSet is an HTML term that denotes the breaking up of the window into multiple pieces. Each of these pieces in turn can contain either another Frameset, or a Frame. Thus it is a somewhat recursive process which can make it confusing.

    To make matters worse, the manner of breaking up the window is also flexible. You can break the window into multiple rows, or multiple columns, or multiple rows and multiple columns.

    Let’s use the Example 4 Frameset procedure as an example. Here’s the result as seen in the browser:

    In this case the window is split initially into 2 rows. The top row becomes the Header of the eventual site. The bottom row is split into 2 columns. The left column is where we’ll put the Menu for the site. The right side of the bottom row is where the rest of the site will appear.

    It’s important to note that each part of the above window is ultimately a Frame. And each Frame has a name (which you set.) By using this name (also known as the “target”) you can determine what pages appear in which frame.

    The Framset page itself does not contain any HTML of its own. It just provides the “container” into which other pages, based on NetWebPage, will appear.

    Web Border Extension

    One way of making pages look better is by placing a border around them. NetTalk has an extension template that simplifies this for you.

    All the examples use this extension in the PageHeaderTag and PageFoorterTag procedures.

    The border extension includes different style possibilities, as well as allowing you to specify the HTML contents to appear inside the border.

    You can use the Web Border extension on NetWebPage procedures, as well as NetWebSource procedures.

    Borders are cosmetic in nature – not functional.

    Web Menu Extension

    Menus are an important part of any app, and the Web is no different. However unlike Windows there are no standards as to how menus are implemented, or how they behave. NetTalk Web Server includes in-the-box support for 5 menu styles.  You can of course implement any menu system you like if you have a sufficient knowledge of JavaScript and HTML.

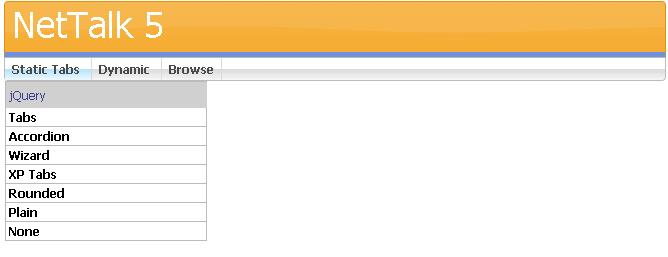

    The first supported menu is the Chrome menu. This is a horizontal menu bar, with drop-down menu items.

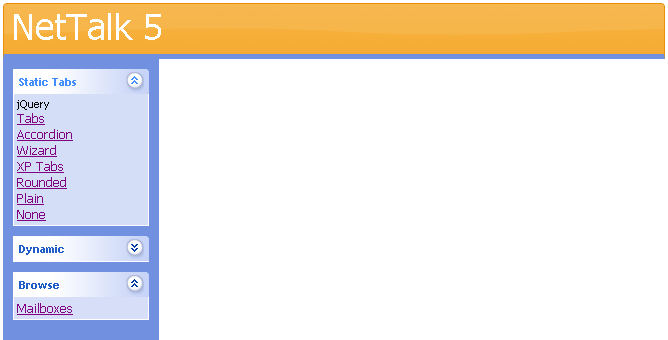

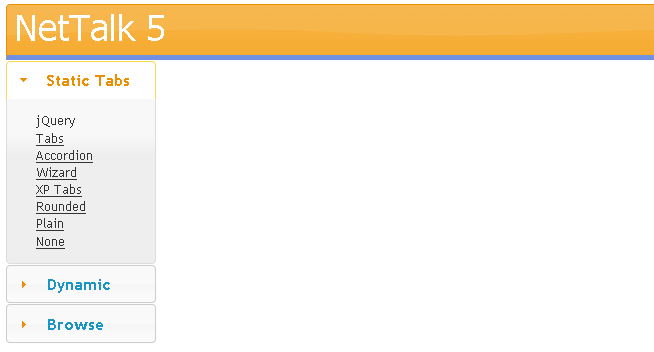

    The second menu style is the Accordion style. This is a vertical menu and works well in both Framed, and unframed pages. The key thing to note about the accordion style is that only one section can be open at a time. As a section is opened, the other sections are closed automatically.

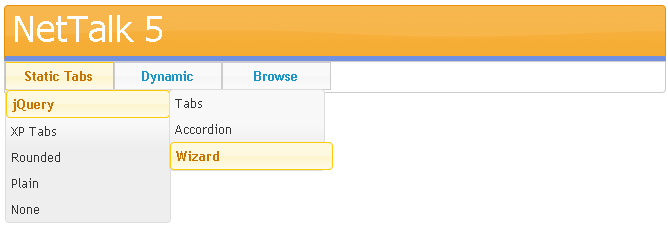

    The third menu style is called the Double-Drop menu. Similar to the Chrome style this menu is horizontal in nature. However the Double-Drop menu supports menus within menus, and also uses the ThemeRoller styles.

    The fourth menu is the XP-Panel menu, which in NetTalk 4 was called the XP-TaskPanel menu. It is similar to an Accordion menu, except that multiple sections may be open at the same time. It is styled to be similar to a Taskpanel in Windows XP.

    the TaskPanel menu is similar to the XP-PAnel. However like the Double-Drop menu, it supports both menus-inside-menus and Themeroller styles.

    NetWebSource Procedure Template

    A procedure template called NetWebSource exists. This allows you to create HTML “snippets” that can be included in other pages. These could contain anything you like, however “Browses” and “Forms are better handled using those specific templates.

    A good example of using the Source procedure in the Examples are the PageHeader, and Page Footer tags. Since the header of each page is common to all pages, this can be defined in one place (in the NetWebSource procedure) and then “embedded” onto multiple pages.

    Generic Pages

    Sometimes it’s possible that you want to use a Browse, Form procedure as a page in it’s own right. NetTalk makes this possible through the concept of a generic page. If you use a control procedure (i.e. a Form, Browse) in a place where you would usually use a Page, then NetTalk will wrap the control up as a page and serve it.

    It’s likely that you may have either a common header, or common footer, (or both) for these pages. In the first 3 examples you can see this in action via the PageHeaderTag and PageFooterTag procedures. These 2 source code procedures include HTML that you want included at the top, and bottom, of every generic page.

    The name of the two tags are set in the WebServer procedure, under the Settings. The generic header tag is

    '<!-- Net:PageHeaderTag -->'

    and the generic footer tag is

    '<!-- Net:PageFooterTag -->'

    Notice the standard wrapping for a NetTalk tag

    <!-- Net:Something -->

    The use of a procedure name in a tag means that that procedure will get called and the HTML from that procedure will get generated into the page at that point.

    The generic header and footer do not apply to NetWebPage pages. In example 3 the procedure IndexPage contains the following HTML – explicitly including the header and footer if we want them.

    <!-- Net:PageHeaderTag -->

    <!-- Net:PageFooterTag -->

    Responsive Layouts

    In the beginning we all had desktop computers, with large screens (circa 12 inches to 17 inches) and life was easy. As time progressed though the size of screens changed dramatically - from 4 inches on the low end to 30 inches on the high end, and everything in between.

    Web apps had to evolve to handle this range of sizes. They became more responsive, able to respond to different screen sizes by adopting different layouts, hiding or unhiding extra information, and so on.

    A Responsive Web App is thus an app which Responds to screen size.

    As the web has evolved, so NetTalk has evolved, but with the added proviso that backward compatibility is ever important.

    The primary way the web evolved was to move from layout based HTML <tables> to layout based on HTML <div>'s. This change, coupled with extra power added to the CSS language allows for a much for flexible layout - one which is able to best respond to the user.

    NetTalk 10 added support for DIV mode. In DIV mode all <tables> (on browses, forms and child-layouts) can be switched to <divs>. In NetTalk 10 the default is still Table layout, however in future NetTalk releases this will change to default to <div> layout. If you have an existing app you will need to switch the app manually from TABLE mode to DIV mode. This is done in the WebServer procedure, Settings / Defaults tab - on the Browse and Form tabs.

    It is likely you will see some differences in your application after making this switch. In some cases the shipping CSS can be extended to better support the switch, but there are some differences you will need to understand.

    Browse Width

    The biggest fundamental difference has to do with width. Specifically <table> width and <column> width.

    Tables are very flexible when it comes to width. They automatically adjust their own width, and the width of every column, to take up as much space as they need, and at the same time as little space as possible.

    One way in which this is evident is that columns will automatically size themselves to fit the visible content. Equally a table will limit it's own width to just-fit the data - often resulting in a browse which appears to be "cramped" against the left-hand edge of the page. It is possible (but not required) to set the size of a table though, and the size of each specific column in the table.

    <div> based layouts are different. In a <div> based layout it is necessary to set the width of the browse or form (defaults to 100%) and each column is sized relative to the other columns. So, for example, in a browse you do not set an absolute value for the width of a column, but rather the relative value for the width of a column.

    (Aside: Taking about this is complicated because on a small screen the browse adapts, so using words like "row" and "column" don't really map to what you see on the screen. But for purposes of this discussion we're considering a browse as it appears on a large monitor.)

    Another side effect of the <div> columns is that because they have this relative width, the column does not get wider to accommodate wider content. So as the screen gets smaller more and more content can become truncated.

    Browse Cells

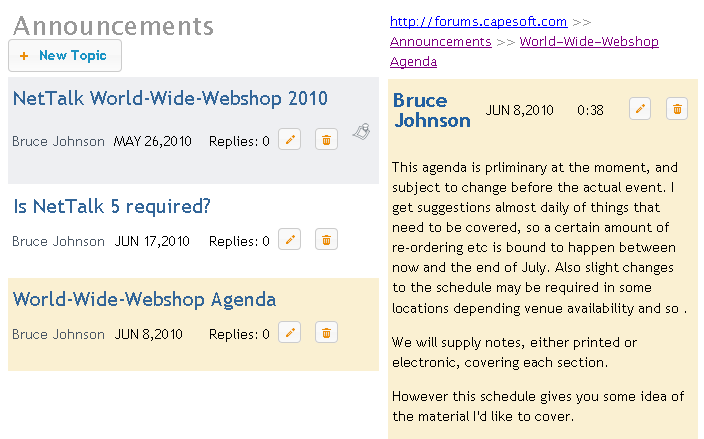

    In the past a browse contained a single item in each column. A cell ( a <td> in HTML terms) in the table contained a single piece of data, or a single button, and so on.

    NetTalk now however allows you to put multiple items together into a single cell. This means that columns can be combined together - for example the typical column for a change button, and the column for a delete button, can now be merged into a single cell, which can making sizing a lot more effecient.

    This has a dramatic effect as the screen gets smaller, because as the screen shrinks so the browse switches from being a horizontal layout, to being a vertical layout. In this case each cell now takes up a whole horizontal row. If you have multiple buttons in the cell then they can still appear next to each other. If you have the buttons in different cells then they appear underneath each other.

    Forms

    A form is a good example of the difference between a Web app, and a Windows app.

    In a windows App the form procedure starts, and remains running until the user closes the window. The act of loading the record, displaying the form, validating the input, and saving to disk all takes place in one place. Importantly one single procedure drives all this functionality.

    In a Web app the form behavior is split over several separate threads. When the user clicks on a link that opens the form, a thread starts which loads the record, and constructs the Html. This Html (this “page”) is passed to the browser and the thread closes.

    When the Save button on a form is pressed then a second thread starts. This thread will validate the record, and save it to disk.

    In a NetTalk app it is convenient though to keep all the code related to a single form in one procedure. This makes things more organized and easier to keep track of. However this one procedure performs a few different functions. Each function should be considered as distinct from the others. Local variables in the form procedure are NOT preserved between calls.  The library ends up calling the Form procedure many times. A parameter to the procedure determines which part of the process the Form procedure must now perform.

    So far I’ve described the form as a Page. And that is not strictly accurate. The form is more like a Control. It can exist on a page all by itself, but it’s more likely to be just one part of a more complex page.  A web form procedure in your app is thus Not a page, but just a control to be included on other pages.

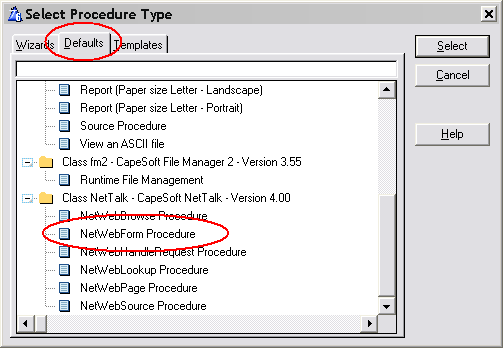

    In the App a form is created using the NetWebForm procedure template default.

    The specific options for the form are covered in the Reference document.

    Advanced

    Forms can be dynamic. In other words when the user Selects, or Accepts any of the fields, then one or more items on the form can be updated. This is done asynchronously (in the background) and allows you to make your forms highly interactive.

    Some of the interactivity is already built in for you. For example if you have a lookup field, and you've entered the code and description fields of the remote table on the Lookup Settings tab, then your lookup field is already dynamic. Try typing in the code rather than looking it up. Notice the way the description changes? That's the sort of thing I'm talking about here.
    Example 21, UpdateInvoices procedure, has a good example of this when selecting a customer.

    Aside: Try typing in the description into the entry field and see what happens.

    Adding your own interactivity to a form is a 2 step process.

    First identify what needs to be changed, and when it needs to be changed. Each row of the form consists of 3 parts, the Prompt, the Value, and the Comment. Each part can be updated, and any number of parts on the screen can be updated on any event. You can also update Prompts, Values and Comments for other fields when this field changes.

    The second part is embedding the correct code (in the right place) to calculate the item you want to display.

    For example, let's say you want to update a Comment Field when a Value is entered. To keep it simple let's assume you're going to validate an Email field to make sure it contains both a @ and a .

    So, step 1, identify (and set) the fields that need to be updated. This is done on the Client-Side tab. For the email field set Refresh: Comment on.

    Then step 2. In some cases you won't need to do a step 2 because the templates are already doing it for you.

    In other cases the code you've entered into the comment field may be sufficient. Like here

    (In this case you've made your own function, called EmailCheck, which is doing the validation for you and returning an appropriate comment. Notice the SessionValue is always used - the whole comment field looks like this
    EmailCheck(p_web.GetSessionValue('Cus:Email'))

    But in some cases you'll need to embed code in the routine that generates this comment (or prompt, or value).

    Remember each prompt, value, or comment field can be updated, and for each of these cells a routine has been generated called either prompt::field, value::field or comment::field where field is the name of the field. For example, in this case the entry field is cus:email, and we're looking to set the comment, so use the embeditor to find the comment::cus:email routine. In this routine is an embed point, and here you can set loc:comment to be what it needs to be. For example;

    If Instring ('@',p_web.GetSessionValue('cus:email'),1,1) > 0 and |
      Instring('.',p_web.GetSessionValue('cus:email'),1,1) > 0
        loc:Comment = 'Email ok'
    Else
      loc:Comment = 'Email not ok'
    End

    In the prompt embed point you would set loc:prompt and in the value embed point you would set the Sessionvalue of the field, using p_web.SetSessionValue('fieldname',value).

    Debugging Tips

    It can be quite hard to debug this asynchronous updating when it's not working. Since there are different parts involved it's hard to know where to look, and which part of the process isn't working. Here's one process you can use to help identify the source of the problem.

    1) Do a Regenerate All. If the code you are adding hasn't been correctly generated into the WebHandler (by the template) then that's the easiest possible problem to fix.

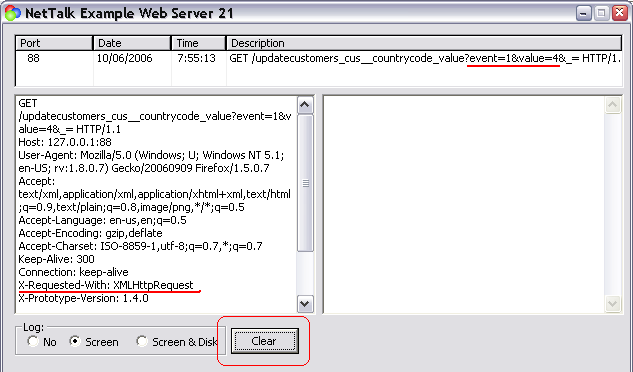

    2) First thing to determine is if the event on the browser is triggering an event to the server as expected. You can do this by watching the Web Server window. Click on the Clear button to clear the log, then change a value. You should see and item appear in the GET part of the log. Like this:

    Note that the request included the Event (Event:Accepted = 1) and also the new value for the field that changed. You can also see the request was asynchronous because of the XMLHttpRequest item in the header.

    3) So the request is being generated, but the response is not making it to the browser. Or perhaps it is, it's just not the response you're expecting. The most likely place for an error is in the embed code you may have added. (Don't worry, it's normal to make errors when writing code. This isn't about blame, it's about correctly identifying the source of the problem so it can be fixed.) What I usually do in this case is comment out my embed code entirely, and replace it with a simple bit of code, that doesn't have a bug, and which makes a visible impact in the browser. For me that's

    loc:comment = Random(1,1000)

    If this works then I examine the embed code a bit at a time to see which part isn't working as expected.

    Tip: Remember that this little routine is being called asynchronously and none of the rest of the Form has necessarily run. So if you need to access other data tables, then you will need to open and close them appropriately. Also you should always use Session variables rather than file variables for the actual form fields. That's why in the example code above I used p_web.GetSessionValue('cus:email') and not just cus:email.

    4) But what if the simple use of Random suggested above doesn't work? Well then the most likely reason is you missed out step 1. But what if it still doesn't work? Well then the next step is to examine the packet that is being sent to the browser. You can do this by adding

    NETSHOWSEND=>1

    to your project, in your app, as a Project Define. Then use the free DebugView program (available from SysInternals) to monitor the outgoing packets.

    Browses

    The browse is the root of many applications. It allows you to display data on the screen in a tabular format. In many way the browses provided by NetTalk WebServer are similar to the browses you are already familiar with in Clarion.

    A browse can have many different settings. These are covered in more depth in the Reference document.

    Browses can be page-loaded, or file-loaded. They can be sorted by clicking on the header. They can have locators.

    In most cases a browse is simply a tabular list of data, something that will be instantly recognizable to any Clarion developer.

    Browse

    However tabular data can be displayed in many creative ways, some of which don't look like a browse at all. The following are two browses, one on the left, and a child on the right.

    browse

    Global Variables

    One big difference between a Web app and a Windows app is the concept of global variables. In a Windows app one user is using the program. Multiple copies of the program may be running, but each copy belongs to only one user. So you can set global variables which implicitly belong to just that user.

    A web app can be serving multiple users (at the same time) from one single exe. So you can't assign a global variable to a single user. All users can see all the globals all the time. (At least that's how your program would behave if you used globals.)

    In NetTalk you use Session Variables to assign values to a user. we discussed Sessions earlier. Each user has a single, unique, session number which they keep for the duration that they are in the browser. If you need to store a variable you do it by writing the value into the Session Queue. And you can fetch it from the Queue when you need it. For example;

    After the user logs in we want to store their name. So we go to the place where their login is validated (ValidateUpdate Routine) and we add some code;

    p_web.SetSessionValue('LoginName',clip(loc:login))

    Later on we can get this value, and put it in a local variable by doing

    loc:login = p_web.GetSessionValue('LoginName')

    if you wanted to embed this session variable inside an HTML page then you can put, inside your HTML,

    <!-- Net:s:LoginName -->

    Deployment

    The default deployment folder structure looks something like this;

    HTML files are placed in the web folder. The WebServer is limited (by default) to supplying files in, and below, this folder. Default is appPath\web where appPath is the location of the Exe.

    You can set the web folder on the NetTalk settings on the WebServer Window.

    Below this folder are a number of folders. You can override these as well, but by default they are:

    Scripts (contain .js files)

    Styles  (contain .css files)

    Log (contain Log files if logging-to-disk is turned on)

    If these folders do not exist they will be created for you.

    In addition it is recommended that images are placed in an “images” directory. However this is not a requirement, just a suggestion.

    You need to deploy your program (exe, dlls, tps files whatever) as normal.

    NetTalk web server does not require any additional programs on the machine. (i.e. no IIS or Apache etc.)

    You need to deploy your web folder onto the server machine as well.

    For more information on program deployment see the Deployment doc.

    Multiple Data Sets

    It is occasionally desirable to identify the user, and then direct them to a specific data set. The same program will be running, but the user will be using one set of data (and potentially a different web folder) to other users of the server.

    The multiple-data-set approach works well for both TPS and SQL data stores.

    To implement multiple data sets you need to
    1. Set the dictionary correctly
    2. Identify the user on each request
    3. Set the filenames or owner strings for the tables appropriately.

    Setup Dictionary

    Tables in the dictionary need to use either a unique Full Path Name variable (for TPS and other ISAM file type) or a Owner Name variable (for SQL file types.) Multiple SQL files can share the same Owner, however multiple Owners (hence different databases for different tables) are also allowed.

    The variables used MUST be set as THREADed.

    Example
    A SQL Table Customers has the Owner Name set to !Glo:Owner
    A global, Threaded, String Glo:Owner is also created (in the dictionary, or the app.)

    Example
    A TPS Table Customers has the Full Path Name set to !Glo:CustomersName
    A global, Threaded, String Glo:CustomersName is also created (in the dictionary or the app).

    Identify the User

    There are a few basic ways to identify the dataset the user is needing.

    Using the Host Name

    The Host Name (ie the URL the user typed) could be used to differentiate the data set desired. For example www.cidc2015.com and www.cidc2017.com are two host names that point at the same server. The server decides which site to serve based on the URL the user used.

    In the same way, sub domains can be used. For example capesoft.somesystem.com might route to a different database than softvelocity.somesystem.com.

    Setting information based on the hostname can be done in the WebHandler procedure, in the RequestHostSet method, before the parent call.

    Example

      Access:Sites.Open()
      Access:Sites.UseFile()
      Sit:HostName = self.RequestHost
      If Access:Sites.Fetch(Sit:HostKey) = 0
        self.site.WebFolderPath = Sit:WebFolder
        self.site.DataPath = Sit:DataFolder
        self.ChangeTheme(Sit:Theme)
      end
      Access:Sites.Close()

    In the above example the host is checked against a table to see if it exists. If it does then the WebFolderPath, DataPath and Theme are all set based on the Host value.

    Note that this bit of code will be called a LOT - once for every incoming request. Thus storing this data in a Memory table is strongly recommended. A Global Unthreaded Queue could also be used, but that is not thread safe, so you would need to wrap queue access in a Critical Section. If you are not sure how to do that then stick to using the Memory table.

    Note also that this code is not setting the Filenames or Owners - that must still be done as described below.

    Generic Login

    The most useful place to validate a login is in the WebHandler procedure, Authenticate method.
    In this procedure you can check the incoming user credentials against your USERS database, and then set session values appropriate to the user there.

    Example


    p_web.Authenticate PROCEDURE(String pUser,String pPassword)
      CODE
      Access:Users.Open()
      Access:Users.UseFile()
      Use:User = pUser
      If Access:Users.Fetch(Use:UserKey) = Level:Benign
        If Use:Password = pPassword
           self.SetSessionLoggedIn(true)
           self.SetSessionValue('WebFolderPath',use:WebFolderPath)
           self.SetSessionValue('DataPath',use:DataPath)
           self.SetSessionValue('theme',use:Theme)
           Return True
        End
      End


    This sets the session values, but you then need to set the properties based on those session values for each request.

    p_web.ParseRequestHeader  PROCEDURE()
      CODE
      self.site.WebFolderPath = self.GetSessionValue('WebFolderPath')
      self.site.DataPath = self.GetSessionValue('DataPath')
      self.ChangeTheme(self.GetSessionValue('theme')
      parent.ParseRequstHeader()


    Set File Names / Owners

    The global, threaded, filename and/or owner variables need to be set in the WebHandler procedure, ProcessLink method, before the parent call.

    Example

    Glo:BreaksName = clip(self.site.DataPath) & 'Breaks.Tps'
    Glo:CountryName = clip(self.site.DataPath) & 'Country.Tps'


    Example

    Glo:Owner = 'some database connection string'

    Printing Reports

    There are various way to approaching printing in a WebServer application.

    Firstly it should be remembered that the printing is a function of the browser. Which means that any page your application delivers is intrinsically a report. The user can click on the browser print option at any time. By careful design, and attention to the information you are presenting, you can make many "reports" obsolete.

    There are times though where a specifically formatted document is necessary. In these cases HTML doesn't necessarily offer the degree of control that you need. The best option in this situation is to create a PDF file, and have the browser display this.

    Since Clarion 6 Enterprise Edition contains a Report-To-PDF extension, this seems like a good place to start. You can take existing report procedures in your application, and with minor additions make it generate a PDF file, and also allow the NetTalk WebServer to send the PDF file to the browser. PDF makes an excellent format for this sort of thing because most browsers already know how to display a PDF (via the Adobe plugin) and you have 100% control over how the page will be displayed, and importantly 100% control over how it will look when printed.

    If you don't have Clarion 6 EE, then there are other 3rd party tools that can be purchased that do a similar thing. NetTalk 4 includes examples of using the Clarion 6 EE functionality, as well as examples from other vendors.

    There are 2 examples included with NetTalk which demonstrate the technique used to use existing report procedures in your web site. In each example there are 2 reports, one simple one, and one more complex one that makes use of an "Options" window, and the ABC Pause button.

    Example 13 (PDF Report - requires C6EE) requires, as the name suggests, Clarion 6 Enterprise Edition (or alternatively the Clarion 6 Professional Edition, with the optional PDF Report Generator).
    Example 14 (PDF Report - requires PDF-Tools) is the same example, but uses the PDF-Tools product from Tracker Software Products to convert the reports to PDF. PDF-Tools is available for Clarion 5.5, 6,7 and 8 so this example works in all of those.

    Steps to use an existing report procedure in a Web application

    1. If you've not already done so, add either the SoftVelocity PDF Global Extension, or the PDF-Tools Report Global extension to your application.
    2. If you've not already done so add the two Global extensions required by NetTalk (Activate CapeSoft's NetTalk, and Activate NetTalk Web Server.)

      Tip: If this is a multi-dll system, you can still add these two extensions, even if this is not the actual web Server app. See the section on Multi-DLL for more information.
    3. Set the Prototype, and Parameters, of the report procedure to

      (<NetWebServerWorker p_web>)
    4. Add the NetTalk Extension to ABC Report to the Extensions list for this procedure.
    5. This step is optional, and is only required if you have a "Report Options" window, or if you have additional parameters passed to the Report.

      When called in "Web mode" the report will not be able to stop and ask the user for options. If options are necessary you will need to gather these using a NetWebForm procedure, or alternatively have the options stored in the Session Queue. An embed point is included at the correct place where you should prime these optiions. The embed point is called
      Prime Report Options

      In the supplied examples a NetWebForm procedure is created, which contains 2 variables, FromSize and ToSize. The Report procedure is dependant on 2 options, also called FromSize and ToSize. In the embed point the following embed code is included:

      fromsize = p_web.GetValue('FromSize')
      tosize = p_web.GetValue('ToSize')

    Advanced

    If your report procedure already takes parameters, then add the new parameter in Step 3 above as the first parameter.
    Make all the other parameters optional.
    When called normally, leave the first parameter out. For example

    myReport(,otherparms)

    When called by the report engine the other parameters will not be passed, so the report will need to populate those values from either the SessionQueue, or the Value queue using the techniques described in Step 5 above.

    If your Report is set to start in Paused mode, then the Start button will automatically be pressed by the NetTalk template, when the report is running in Web mode.

    Dates

    Date formats are a little tricky to handle. In Clarion you're probably used to selecting date formats all over the place, using one of the built-in date pictures (like @D1 or @D2 etc.). However at the browser these values are meaningless, so a suitable method for selecting dates must be available.

    With NetTalk, the date-selector popup is the one offered by jQuery. This supports all Clarion date pictures up to (and including) @D16. Note that D17 and D18 are not supported.

    In order to allow you to select the format globally, rather than just on a form-by-form basis, there is a setting on the WebServer procedure, Extensions, NetTalkWebServer, Settings called Date Picture. This should be entered without quotes.

    On Browses you can set the picture of a specific column to anything you like. If you would like to set it to say D6 then you would enter '@D6' . If you would like to set it to the global default then use p_web.RequestData.Webserver.DatePicture .

    Multi-DLL

    If you have, or are making, a Multi-DLL system (ie one comprised of many APP files) then you may want to use procedures in one other other DLL's in your NetWeb application.  For example, if you have a report, or graph, in an external DLL, it would be ideal if this procedure could be used in the Web interface as well.

    First a quick note about normal Clarion Source procedures. These can be used already in the normal way. Remember your web app is a Clarion program, and Clarion already has templates in place to allow you to use External procedures in an application. So using normal source procedures is no problem.

    The problem occurs when you are exporting procedures with NetWeb extensions. For example a NetWebReport, or NetwebBrowse and so on. If you wish to use these procedures in the main NetWeb app then you need to tell the WebHandler to include these procedures. To do this:

    1. Open the application that contains the WebHandler procedure.
    2. Go to the Global Extensions, to the Activate NetTalk Web Server extension.
    3. Go to the Multi-DLL tab.
    4. Enter the name of the remote APP file here.

    Now all the NetWeb procedure in that remote APP file will be included correctly in the Web Handler procedure.

    In the remote app you will need to add the Activate NetTalk Global extension, Activate Net Web Server Global extension as normal (although you don't need to fill in anything on the Multi-DLL tab).
    Your procedures in the remote APP will need to be EXPORTED in the normal Clarion way.
    In the WEBHANDLER app you will need to link in the remote procedures in the normal Clarion way.

    So to summarize:

    1.  Make the apps just as you would in any normal Multi-DLL Clarion system.
    2. In the WebHandler App, add the "External Apps" to the External Apps list on the NetTalk Global Extension.

    Possible Errors:

    1. Compiling the WebServer application you get an error;
      Link Error: Unresolved External BrowseSomething@

      This means you probably haven't EXPORTED the procedure in the app where it is declared. Go to that app, go to that procedure, and make sure Export Procedure is ticked on.
    2. Compiling the WebServer application you get an error;
      (someapp_ni.clw) Syntax error: Unknown Function label
      and when you go to the line in question you see a call to one of the web procedures - possibly something like this;
      UpdateCustomers(self,Net:Web:Div)

      This means you have not included that procedure (in this example, UpdateCustomers) as an external procedure in the WebServer app. Add it as an external procedure (with the correct Prototype) in the normal Clarion way.
    3. Compiling the WebServer application you get an error;
      (someapp_ni.clw) Syntax Error : No matching Prototype available

      This means you've added the procedure, as an external, to the WebServer app, but you've not set the Prototype correctly for that procedure. The best approach is to go to the app where it is declared, and copy the prototype from there, so they match.
    4. When you run your application, and go from one procedure to another, say from a browse to a form, and it does not seem to work, then make sure all the external apps are added to the Global Extension in the WebServer app. Adding the LIB's is not sufficient, you need to add any apps with web procedures to the global extension.

    Using Browses and Forms on Static Pages

    By embedding a couple of tags on your web page, it is possible to generate fully functional browses and forms which appear inside your static pages.

    Basic support needed on the page

    1. The first line of the page must be
      <!-- NetWebServer -->

    2. Inside the <head> of your page you must put
      <!-- Net:c:Head -->

    3. Just before the </body> tag of your static page add
      <!-- Net:c:BodyEnd -->

    4. The NetTalk styles, and scripts, should be in folders called Styles and Scripts respectively, and these folders should be inside the same folder as your HTML pages. In other words, the pages will reference styles/netweb.css.

    Embedding a Browse on the Page

    You can embed a browse on the page simply by using a NetTalk tag. For example
    <!-- Net:BrowseCustomers -->
    will embed the BrowseCustomers procedure at that point on the page.

    Embedding a Form on a page

    If you have embedded a browse on a page, then chances are you will also want to embed the form on a page.
    In this case simply
    a) Insert the tag into the page as normal. For example
    <!-- Net:UpdateCustomers -->
    and

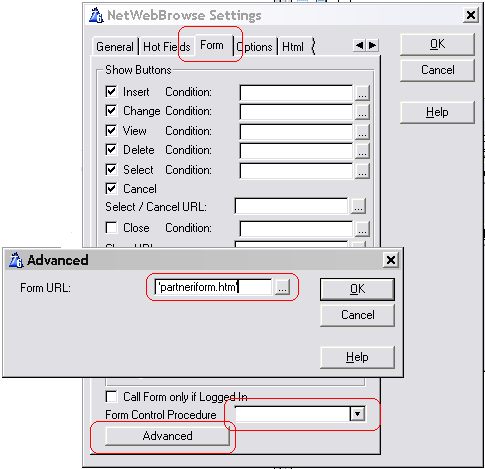

    b) Tell the browse procedure, in your app, to call your static page on an update, rather than go directly to the form. You can do this by going to the NetWebBrowse settings, to the Form tab, clear the Form Control Procedure field, click on the Advanced button, and enter the name of your static form page.

    Embedding the Popup, and Message on a page

    The validation on the form can generate an automatic Message (which appears on the window) and/or an automatic Popup (which appears as the form is refreshed).  If you create a static page as a container for the form, then you'll want to embed these onto that static page as well.

    Use <!--Net:Message--> to embed the message. I recommend putting this just before the tag which includes the form.

    Use <!-- Net:Popup--> To include the popup. I recommend placing this at the bottom of the page, after all the visible components of the page have been done

    HTTP Compression

    Most browsers allow the data passed from the server to be compressed using the GZIP format. Using this technique it is possible to improve performance, by reducing the bandwidth requirements for a site.

    Graphics

    If you are using PNG, GIF or JPG files for your graphics, then the graphics are already compressed. No additional compression is necessary, or recommended.

    Static Page Pre-Compression

    The most efficient way to compress am unchanging text file, such as a static HTM file, a JS file, or a CSS, file is to store a compressed copy of the file on the disk, in the same folder as the original file. Because the file is already compressed there is no additional CPU load on the server, and the minimum bandwidth is required to get the file to the browser.

    NetTalk supports this pre-compression by looking first for filename.gz before looking for filename. So if you have a file, called say whatever.css, then you can use the Gzip utility to compress this to whatever.css.gz. and store this on the server along with whatever.css. However you want to leave the whatever.Css file there as well for the benefit of those browsers that don't support compressed files.

    You can disable the automatic serving of pre-compressed files on the Settings/Advanced tab of the NetTalk Extension in the WebServer procedure.

    Dynamic Compression

    NetTalk 7 introduced the concept of dynamic-page compression as well. This is on by default, but can also be turned off on Settings/Advanced tab of the NetTalk Extension in the WebServer procedure.

    Anchors

    Traditional Web Pages make use of Anchors to hyperlink not just to a page, but into the page as well, taking the user to a specific part of the page. While this feature would be nice to do in a dynamic web app, there are some complications.

    A normal anchor comes after the URL, and is separated from the URL by a # character. For example in https://www.capesoft.com/downloads#nettalk10 the nettalk10 part would be considered to be the anchor part.
    Note that the anchor part, after the # sign is not passed to the server. Thus when the user uses an anchor in the URL, the server does not know that they have done so, nor does the anchor get passed to the server.

    The most likely place where you would want to use an anchor, on a dynamic page, is on a browse. And the browse template has an option for putting one, or more, anchors on the browse itself. For example the dynamically-generated Downloads page on the CapeSoft site contains the product name for each row of the browse.
    So https://www.capesoft.com/downloads#nettalk10 takes you to the downloads page, and then straight to the NetTalk 9 product on that page.

    This approach works very well for file-loaded browses. Since all the data rows are always on the page, if the anchor exists then the browser will navigate to it. For page loaded browses however the approach fails because the server does not see the anchor, and hence does not know to generate the specific page that contains that specific anchor.

    NetTalk has two approaches to solving this problem. By necessity these are not web standards, however they may be useful. The first approach is to use a normal URL parameter (a) in the name, and the second is to use a slightly modified URL. You can use either, or both approaches in your application.

    The parameter approach is somewhat more standard in that passing parameters is a well established web technique. The name of the parameter is use is simply a. For example;
    https://www.capesoft.com/downloads?a=nettalk10
    As you can see the # has simply been replaced with ?a=
    More completely the URL should be
    https://www.capesoft.com/downloads?a=nettalk10#nettalk10
    But since the browse is page-loaded, all the records will (hopefully) be visible so the last part is unnecessary.

    The second approach is slightly neater, but also somewhat more outside the web norms.
    https://www.capesoft.com/downloads!nettalk10
    In this case the # symbol is replaced with a ! symbol. This is passed to the server, which then removes the name after the ! and attempts to find the record identified by that anchor in the browse.

    Whichever approach you use it should be pointed out that anchors are not suitable for all browses, at least not without a little bit of hand-coding. In order to position to the browse to contain the record, the table is searched to find a record with a matching anchor. This is not a key or index based operation, so can result in the reading of a lot of records on large tables. For tables with more than a few thousand records it is suggested that the anchor be chosen to match a key value, and that some embed code is added to optimize the search based on the knowledge that the value can be located via a key.

    Translations

    Server-Side translations

    It is often desirable to allow your web app to be translated into the language of the user's choice. A NetTalk app has several features which makes translations possible.

    Translate Method

    The root of all translation activity in the WebServer is the WebHandler procedure, .Translate method. This method is called regularly from inside the web app with all the various "text" that the app uses. You can use any translation engine inside this method to convert  the text to something else. The exact code that goes in here will depend on the engine you are using.

    Internally the Translate method also checks the text to make sure it is "safe" and if necessary encodes any special characters so they are compatible with HTML and XML. For this reason it is advised to call the Parent method, with the translated text before returning that value. For example;

    p_web.Translate PROCEDURE(<String p_String>,Long p_AllowHtml=0)

    ReturnValue ANY

      CODE

      If Omitted(p_String) or p_String = '' then return ''.
      ReturnValue = SomeTranslationFunction(p_String)
      ReturnValue = PARENT.Translate(ReturnValue,p_AllowHtml)
      Return ReturnValue


    The contents of the SomeTranslationFunction call will depend on the translation engine you are using.

    AnyText

    There are several 3rd party translation tools available for Clarion. One of them is another CapeSoft accessory called AnyText.

    AnyText includes built-in support for NetTalk which is covered in the documentation there. Basically AnyText includes a template which adds the necessary code to the Translate method discussed above.

    Date Picture

    The recommended date picture to use throughout the application is p_web.site.datepicture. This picture can then be set in the ProcessLink method, in the WebHandler procedure, based on the user preference.

    Client-Side Translations

    The server-side translation engine takes care of text generated by the app. However NetTalk also makes use of a number of client-side JavaScript widgets which (in some cases) have their own text. Most of these widgets also include a mechanism for translating that text as desired.

    Date Picker

    Date Options (for all the date lookups) can be set by setting a property (p_web.site.DateOptions) in the WebHandler Procedure, in the .ProcessLink method, before the parent call.

    The various options for the date picker are documented on the JQuery UI web site. Here's an example from Jeffrey Kuijt which translates the various fields into Dutch.

     Self.site.DateOptions = |
        'monthNames: [''januari'', ''februari'', ''maart'', ''april'', ''mei'', ' & |
                    '''juni'', ''juli'', ''augustus'', ''september'', ''oktober'', ' & |
                    '''november'', ''december''],' & |
        'monthNamesShort: [''jan'', ''feb'', ''maa'', ''apr'', ''mei'', ''jun'', ' & |
                           '''jul'', ''aug'', ''sep'', ''okt'', ''nov'', ''dec''],'&|
        'dayNames: [''zondag'', ''maandag'', ''dinsdag'', ''woensdag'', ' & |
                    '''donderdag'', ''vrijdag'', ''zaterdag''],'&|
        'dayNamesMin: [''zo'', ''ma'', ''di'', ''wo'', ''do'', ''vr'', ''za''],'&|
        'dayNamesShort: [''zon'', ''maa'', ''din'', ''woe'', ''don'', ''vri'', ''zat''],'&|
        'closeText: ''Annuleren'','&|
        'currentText: ''Vandaag'','&|
        'dateFormat: ''dd-mm-yyyy'','&|
        'nextText: ''Volgend'','&|
        'prevText: ''Vorig'','&|
        'showWeek: true,'&|
    ! display week numbers
        'weekHeader: ''wk'','&|
    ! week number column header
        'firstDay: 1,'&|                 ! first day of the week is a monday
        ',buttonText: ''Hulpkalender'''  ! tooltip of calendar icon

    Authentication

    When a client program (like a browser) access the server then a session is created. In many cases it is desirable for the client to "log in" to the server in order to perform some actions. This process of identifying the user is known as Authentication. There are a number of approaches that the client can take. Because there is this variety of methods, and because you don't want to duplicate code more than is necessary there are best-practice places for you to write the necessary code.

    WebHandler Procedure; Authenticate method

    This method can be called with a Username and Password. You can do all the work in here to determine if the password is correct or not. If it is correct then set the ReturnValue to true. Note that if you access any tables (including your User table) you will need to open and close it here.

    You should definitely populate this method if you want to support Basic Authentication. You can also populate this method, and call it manually, from a Login Form.

    WebHandler Procedure ; SetSessionLoggedIn method

    This method will be called when the user is logged in (or logged out). Any additional work required at that point (like setting the SessionLevel or storing other User variables in the Session Queue) should be done here. Note that if you access any tables (including your User table) you will need to open and close it here.

    WebHandler Procedure ; GetPassword method

    This method is only used if you support Digest Authentication and you have access to the plain-text password on the server side(*). Given a specific user this method should return the password for that user.

    (*) Storing user's passwords is considered a bad practice and as such Digest Authentication is not a recommended approach to authentication. It is better to store a Salted Hash of the user's password instead. Basic Authentication allows you to store a salted has of the password, so is considered a better approach over Digest Authentication for sites secured with TLS.

    Multi-Tab Support

    Users can, and sometimes do, open your web app in multiple tabs in their browser at the same time. Because all tabs share a Session cookie, the server is unable to tell when a request comes from one tab, or from some other tab, and hence activities on one tab can influence the "state" of the app in another tab. This influence is usually unwelcome and can lead to strange behaviors, or in extreme cases data corruption.

    NetTalk 8.22 introduced Multi-Tab support which can be enabled in the WebServer procedure, Performance Tab settings.

    If this support is on then each tab is given a unique identifier, and requests from that tab include the identifier. In this way the app can identify which tab is making a request, and hence keep the state in one tab different to the state in another tab.

    If this feature is on, then setting a session value in one tab will not set that value in other tabs (See below for how to create cross-tab values).

    However the session itself is shared. The following states are stored in the session itself, and NOT in the session data queue. If any of these states change in one tab they will therefore change in all tabs.
    1. LoggedIn (yes or no).
      The details of who is logged in are usually stored in the SessionData, and that SesisonData will not change. However the overall state (logged in / not logged in) will be consistent across all the tabs. If the user wishes to Login as 2 different users at the same time, in different tabs, then they would need to login on one tab, open a new tab and login again with different credentials. As the programmer, you should record _who_ is logged in in SessionData and use the SessionData where applicable. Because each tab has distinct session data the user will effectively be logged in twice. If they logout _in any tab_ they will be logged out in all tabs.

      If you are logging login's and logouts by embedding code in the SetSessionLoggedIn, ValidateLogin and/or NotifyDeleteSession then you need to be aware that you'll only get one call to these methods, but in effect multiple logout's may be occurring at this point.
    2.  Security Level
      This is also at the SessionLevel, not the SessionDataLevel, so changing the level in one tab will change the level in all tabs.
    3. Last Activity
      Every time the user performs some activity, which results in a call to the server, the session timeout period is reset. This remains at the session level, not the Tab level, so if the user performs an activity in any one tab, they extend the session, and hence all tabs are extended.

    Cross-Tab Session Values

    Session values are stored in a queue using the SessionID / Name as the identifier. You don't actually pass the SessionID as that's handled for you. Multi-Tab support changes this so that the queue became Session ID / TabId / Name. Again TabId was handled (invisibly) for you.

    From build 8.45 there is the ability for you to specify the "tabId" to use. The generated one only uses numbers and letters, so adding something else (like say a *) will guarantee there is no clash.

    By specifying the TabId you can basically create your own (invisible) "tab" - and you can get, and set values in this "tab". So when you want to create or use a "cross tab" value, you can put it in this tab. For example;

    p_web.SetSessionValue('name','value','picture','tabid')

    Typically the picture is omitted so this might be

    p_web.SetSessionValue('name','value', '' ,'tabid')
    or
    p_web.SSV('name','value', '' ,'tabid')

    however do NOT use

    p_web.SetSessionValue('name','value','tabid')

    Omitting the extra , '' , would be bad.

    On the Get side it's a little simpler;

    p_web.GetSessionValue('name','tabid')
    or
    p_web.GSV('name','tabid')

    Other methods that have been extended are;
    p_web.IfExistsSessionValue('name','tabid')
    p_web.DeleteSessionValue('name','tabid')
    p_web.GetSessionValueLength('name','tabid')
    p_web.GetSessionValueFormat('name','tabid')
    p_web.GetSessionPicture('name','tabid')

    Of course you will need to change all your existing code where you want to store or retrieve these "cross tab" values, but all other places remain unchanged - unless specified the tab ID default remains as it was.

    Web Sockets

    Web sockets allow a connection to be made between the browser and the server, and to remain open. Fundamentally this means that information can be pushed to the browser, something not possible with the request/response nature of HTTP.

    Requirements

    Sessions

    If a web socket connection is open between the page and the server, then the session on the server will not time out. In other words, the web socket connection keeps the session alive. However if the web socket disconnects (and there has been no other activity on the session for some time) then the session may end soon afterwards.

    Activate WebSockets Support

    1. Go to the WebServer procedure, Extensions, Settings, Scripts tab and tick on the WebSockets option.

    NetWebSource (including Header and Footer)

    To add a watched value to a NetWebSource procedure is a two step process;
    1. Add the value to the HTML with an appropriate ID
    2. Add the item to the Watch List (on the watch Tab)

    HTML

    The watched value needs to be in a block (ie a <span> or a <div>) with an ID parameter. For example;

    Users Online: <span id="NumberOfUsers"><!-- Net:h:UsersOnline --></span>

    In the above example the id is NumberOfUsers and the value being displayed is a Host Value (it could just as easily be a Session Value) called UsersOnline. The idea is that as the value inside the Host value changes, so the contents of the <span> will be refreshed.

    NetWebForm

    Display

    Add the Display field to the form in the usual way. When setting the settings for the tab, on the Display tab, set the "Display" to either Session Value or HostValue, and then enter the Session Value Name (or Host Value Name) in the field. For example;

    Display: SessionValue
    'userAge'


    NetRefresh

    NetTalk Desktop includes a global extension template called NetRefresh. This adds functionality to desktop programs such that if a row in a table is changed on one workstation, it is automatically updated on another workstation. In other words if 3 users are looking at the browse customers screen, and one of them changes a record, then that change is automatically (and immediately) visible on the other user screens ( without them doing a refresh.)

    From NetTalk 11 this functionality has been extended to include WebServers. This means that changes in a web server app will immediately reflect in the browser for other users who happen to be looking at the same data.
    To be clear, data updated in the web server, or updated in a desktop app will be updated for other users, regardless of whether they are in a web or desktop view.

    In the Web Server program this is accomplished by the browse creating a web-socket connection to the server. Therefore this feature is off by default and must be turned on on a browse-by-browse basis. Noting the changes made in a form (or EIP) do not incur a performance penalty, and so that is on for all forms (if NetRefresh is active.)

    Activating NetRefresh in a Web Server App

    1. Add the Global NetTalk Activate NetRefresh extension template to the app
    2. Go to the WebServer procedure, Scripts tab, and turn on support for web sockets.
    3. In the app, Open the WebServer procedure, go to Extensions, to the NetRefresh extension and tick on this is a WebServer procedure
    4. Unlike for desktop programs, Netrefresh is not enabled for browses and calendars by default. It needs to be turned on, on a case-by-case basis.

      For browses that need to be automatically refreshed, go to the Advanced tab and tick on Refresh via WebSocket. Also set the Refresh parameter to determine where the browse will refresh to (default is "disabled")
    5. For calendars that should be automatically refreshed go to the Advanced tab and tick on the option to refresh via WebSocket.

    Triggering a table change from the WebServer

    You now have browses watching the Host-Table value, and refreshing themselves when that changes. If the table changes via the web interface, or via another desktop app with NetRefresh (on the same LAN as the server) then you are done.

    But what if the table changes via some other mechanism - like perhaps code in the WebServer procedure? In this case, in the web server procedure you can use
    s_web.SetTableValue('tablename',today() & '-' & clock())

    If you are in a WebHandler procedure (like WebHandler, or any NetWebBrowse, NetWebForm etc) then you can use
    p_web.SetTableValue('tablename',today() & '-' & clock())

    This will trigger a refresh event to the browses that are monitoring the table value.

    PHP

    NetTalk has the ability to serve PHP pages. It does this by having the ability to call the Pgp-cgi.Exe program, feeding it the necessary information it needs, and trapping the output. The primary purpose is to allow easier integration to existing web sites.

    Note: In order to support PHP from your web server, you will require OddJob and StringTheory.

    Example: A good example of using PHP in an app is example 58 (cunningly called PHP).

    In order for your application to support PHP pages, you need to do the following three steps;

    a) Add the OddJob, and StringTheory global extensions to your application. If you are building a multi-dll application then add this to the Data Dll.

    b) Copy the PHP folder from the Example 58 folders. This contains the Exe and DLL's and other support files that PHP requires. This folder should be a sub folder of your application folder.

    c) Make sure when you deploy, that the path name to the application does not include any bracket characters. The example is in a folder called "php (58)" and this WILL NOT WORK. You must rename the folder to say "PhpExample" in order for it to work.

    There is a property, called phpPath which contains the path to the Php folder. If you wish to relocate the Php folder for some reason, then set the property in the WebHandler procedure, ProcessLink method, to the actual location. For example;
    self.site.phpPath = 'c:\php'

    Note that one of the files in the Php folder is the Php.Ini file which contains details that the Php exe uses. Since this file can change from time to time (and can be changed internally by the web server) it is not recommended to have the Php folder in the c:\program Files path. Under Windows writing to this folder is forbidden.

    IP Banning

    Occasionally a client behaves badly when connecting to a server. You'll occasionally see this in a web server when a server is subject to an unsolicited penetration test. All NetSimple servers (and hence WebServers) in NetTalk 9 have the ability to Ban an IP address. When an address is banned then all existing connections to that address are closed and no further connections from that IP address will be accepted.

    IP Banning is implemented at the NetSimple level, so any NetSimple server can ban clients. The most common usage is for the WebServer, but Banning is not limited to the web server.

    A maximum of 10 IP addresses can be banned at any one time. If additional addresses are banned then the oldest banning is dropped and the latest one added. If this limit becomes a problem it can be expanded, but typically banning is unusual and not many addresses need to banned at once.

    Banning is not the same as Rate Limiting, which simply applies a standard of "fair use", Rate Limiting will be discussed elsewhere.

    Methods

    MethodDescription
    Ban (IPAddress)Adds a specific IP address to the Banned list. If the IP is already on the list then there is no change to the list.
    Unban(IPAddress)Removes a specific address from the banned list. If the IP is not on the list then nothing happens.
    IsBanned (IPAddress)Returns true is the IP address is banned, false if not.
    GetBannedReturns a comma separated string. the string contains the IP addresses of all the currently banned clients. In addition the final entry in the list contains the number of addresses that are currently banned.

    Apply to WebServer

    To apply banning to a WebServer procedure
    1. Go to the WebServer Procedure to the Window Designer.
    2. Delete both the Logging and Performance control templates.
    3. Return to the AppTree (this step is important.)
    4. Go back to the WebServer procedure, to the screen designer.
    5. Populate the Logging and Performance control templates onto the two tabs.
    The Ban button is added to the first tab, with the logging. To ban an IP address highlight an entry in the log list, and click the Ban button.

    The list of banned IP addresses and the Unban button is on the performance tab.

    Request Filtering

    It's possible to add request filtering to the server. This is a check for specific patterns of "bad" behavior which can help minimize the time spent on requests which are obviously not valid for this site.

    That said, checks on incoming requests apply to all requests, so effectively slow down all legitimate requests. So there's a balance here between aggressive filtering and improved overall performance.

    If a request comes in, it is received by the WebServer procedure. This does very little to inspect the incoming request, doing just enough to understand when the request has been completed. Once the request has completely arrived it is handed onto a separate thread for processing.

    This processing thread first checks the request to see if it matches any of the procedures (browses, forms, pages etc). If it does not then it checks the filename for obvious problems (in the ValidateFileName method) and then looks for the file on disk. If not found then it returns a 404 error.

    Errant requests cannot cause harm to the system. If someone asks for a PHP page that does not exist they simply get a 404. If you run a server on the internet you'll quickly see items appear in the log asking for pages or URL's which are known flaws in say PHP or IIS or whatever. These don't do any harm to the NetTalk system other than using up a few CPU cycles.

    That said, it is possible to add extra filtering to the WebServer procedure, and the WebHandler procedure if you wish to do so. For example, if none of your pages use a .php suffix, and you don't support PHP, then you can filter out PHP pages earlier in the process.

    WebServer

    In build 10.20 a new method was introduced in the WebServer procedure. This method, called FilterRequest, is called once per request when the end of the HTTP header in the request has been detected.

    At this point you can inspect the request (header) and return Net:Ok if the request passes, or Net:NotOk if it fails. Remember this code runs for every single incoming request so make sure to keep it as fast as possible.

    At this point in the code the incoming request is in the self._ConnectionDataQueue.Data property. This string may be bigger than the current request, and may not be padded with spaces. The current length of the request is in self._ConnectionDataQueue.DataLen. The data property may contain more than just the header, it may also contain some (or all) of the body. A passed parameter pCRLF indicates the location of the end of the header part.

    No properties for the request are parsed by this point, but you can use the self._GetHeaderField method to parse out headers.

     For example;

    expect = self._GetHeaderField ('Expect:', self._ConnectionDataQueue.Data, 1, |
             self._ConnectionDataQueue.DataLen, 1, 1)


    Here's another example, looking for .asp

      ReturnValue = PARENT.FilterRequest(pCRLF)
      If instring('.asp',lower(sub(self._ConnectionDataQueue.Data,1,self._ConnectionDataQueue.DataLen)),1,1)
        ReturnValue = NET:NOTOK
      End
      RETURN ReturnValue


    Bear in mind that the above test is simplistic. It is searching for .asp in the whole header, not just the URL part. You may want to limit the search to the first line of the request, and so on.

    Since this filter takes place before the item is added to the log, and before any performance measure, this request will not be added to the log and will not be added to the site statistics (total requests and so on.)

    WebHandler

    There are two methods in the WebHandler procedure where additional filtering code (based on anything you like) can easily be added.

    ParseRequestHeader

    The ParseRequestHeader method parses out the HTTP header, and allows you access to all the common header values. If you add code after the parent call you can inspect any of these values and reject the request by returning Net:NotOk. When this happens the connection to the client is terminated without an error code being returned.

    Since this happens in the WebHandler the item is added to the log and it is also included in the site performance metrics.

    Some useful properties you can inspect here, after the parent call, are
    PropertyPopulated From
    self.PageNameThe name of the page/file in the URL. No parameters, and no path, just the page name.
    self.RequestAuthorizationAuthorization: header
    self.RequestContentTypeContent-Type: header
    self.RequestFileNameThe local name, including local path to the file on the disk.
    self.RequestHostHost: header
    self.RequestOriginOrigin: header
    self.RequestRefererReferer: header
    self.SOAPActionSOAPAction: header
    self.SpiderSet to true if the request is coming from a known web spider, like Google or Baidu etc.
    self._UserAgentUser-Agent: header
    self.UserAgentThe browser being used, like curl, edge, safari or chrome etc.
    self.WholeURLThe whole incoming URL of the request.
    self.XForwardedProto X-Forwarded-Proto: header
    Example

      ReturnValue = PARENT.ParseRequestHeader()
      If instring('.php',lower(self.pageName),1,1)
         ReturnValue = Net:NotOk
      End
      RETURN ReturnValue

    ValidateFileName

    As mentioned earlier a later test is done using the ValidateFileName method. This method takes a filename as a parameter and returns  Net:Ok if the file is ok. It returns either Net:Blank (-1) if the file is blank, or Net:Abort (-2) if the file is known to be bad. If the method returns anything other than Net:Ok then it sends the browser a 400 Error (Bad Request)' and closes the connection.

    Host Variables

    Host variables are like Session variables, but they are common to all users. So a host variable written by one user can be read by another user.
    Host variables can be set from a processing thread by using p_web, but they can also be used from the web server procedure using s_web. So p_web.SetHostValue(name,value) can be used in WebHandler, Browses, Forms and so on. In the WebServer procedure though you can also set them using s_web.SetHostValue(name,value).

    Host variables exist outside of sessions and so are not cleared by the deletion of a session. Internally they are stored in the same queue as the SessionData, so they will reflect as SessionData on the Performance tab of the server. This means that it's possible to have SessionData exist, even if the number of sessions is set to 0.

    Because the variables exist across sessions they are useful for sharing information between users. They are useful for broadcasting information to either all users, or a subset of users using WebSockets.

    Tags

    A new tag form Net:h:name, has been added. This allows you to use host variables in tags, just as you would session values.

    Methods

    MethodDescription
    SetHostValue(Name,Value)Set a specific hostname to a specific value.
    SHV (Name,Value)Shorthand for call to SetHostValue.
    GetHostValue(Name)Get the value of a specific hostname.
    GHValue(Name)Shorthand for call to GetHostValue.
    DeleteHostValue(Name)Delete a hostname variable.
    WatchHostValue(Name,Watch)Watch a hostname variable. If it changes then the new value is sent to either debugview, or the web sockets. Valid values for Watch are net:WatchDebug and net:WatchSocket.
    PushHostValue(Name)Sends the current hostname variable to all the websockets which are watching the variable.

    See Also


    Tags

    Popup Animations

    Support for animations for the opening and closing of popup windows has been added. These animations can be set globally (On the various Default tabs of the WebServer procedure) or locally for each procedure type.

    Animations are provided by the jQuery UI framework. animations consist of an effect name, and a duration time. The duration time is in thousandths of a second. A list of possible effects can be found at https://jqueryui.com/effect/.

    Examples;

    'effect: "slide",duration: 500'

    'effect: "transfer",duration: 300'


    Rubberbands

    This is a feature which can be used to multi-select multiple rows, or columns (or both) on a browse.

    To turn it on Select the Rubberband option on the Browse template, Options tab.

    If the option is on then the user can click hold the mouse left button down on a cell, move the mouse to span multiple cells, or rows, and then release the button. While the mouse left button is down a "rubber band" will be visible to the user so they can see what they are selecting.

    When the user releases the button the rubber band can be either left visible or made invisible. By default it becomes invisible visible. If you wish it to remain on mouse up then set the option Hide rubberband on mouse up (also on the Options tab) to off. If this option is off then you will need to hide the rubberband manually yourself (when it is appropriate to do so.) You can do this by calling;
    p_web.ntBrowse(loc:divname,'hideRubberband')
    Remember that JavaScript is case sensitive, so the hideRubberband must be written exactly as is.

    For a web app, when the user selects an area a request is sent to the server. This request sets the event to selectRange, and it is handled in the browse procedure in the SelectRange routine. This routine contains a loop, which parses out the row ID's for you and loads the records the user has selected. What you then do with those records is up to you.

    Once your code is complete you may wish to refresh the browse. This would be necessary if the code you did altered the rows, and you wanted that alteration to be visible to the user. You can turn this on using the Refresh browse on mouse up option (also on the options tab.)

    On the options tab you can also set the minimum and maximum column allowed for the rubberband. This allows you to minimize the columns the user can select. If blank (or 0) then the setting is not applied.

    Scanning Barcodes and QR Codes

    NetTalk 11.16 added support for the Form Field Type Barcode Scanner.
    This allows your camera (webcam on PC's, Environment Camera on phones and tablets) to be used to scan barcodes and QR Codes.

    To enable support for this make sure you tick on the Barcode Scanner script, on the Scripts tab, in the WebServer procedure.

    Tthe barcode scanner is added to a form in the same way as any other form-field type. The size of the camera image can be controlled using CSS. This CSS sizing does not affect the resolution of the scanner (which is dependent on the resolution of the camera.)

    A variety of Barcode formats are supported (including CODE 128, CODE 39, CODE 39 VIN, CODE 93, EAN, EAN-8, CODABAR, UPC Code, UPC E Code, INTERLEAVED 2of5 and 2of5. QR Codes are also supported.

    On most devices (everything except iOS) a sound can be played when the barcode is scanned.

    The value read can be sent to a field on the form - in the case of a QR code, if the QR Code represents a URL then that URL can be automatically followed.

    Notifications

    Notifications allow you to display a notification to the user when something happens.
    To make use of Notification turn on support for the Notification script in the WebServer procedure, Scripts tab.

    Web Notifications

    This implements the browser Notifications API. Web Notifications happen when the user is in a Web Browser and they are open on a page in your site.  The site must be secure (HTTPS)  for notifications to work.

    Web Notifications are supported in Chrome, Firefox, Safari and Edge. They are not supported in IE. They are sort-of supported in Chrome on Android, but not Safari on iOS. How the notification is displayed to the user depends on the OS and Browser combination. Some browsers (for example Chrome on Windows 10) make use of the OS Notification system others (like say Firefox on windows 10) display the notifications inside the browser. (For notifications on Android and iOS see Push Notifications below.

    Sample Notification

    In Chrome on Android, the notification makes a small sound on arrival, and will appear in the notifications bar (when the user pulls down the notifications area) but it does not interrupt the browser. So the notification is likely to be unnoticed.

    On the first notification sent to the user, they will be asked to either allow, or block, notifications. Whatever they choose will be remembered, and they won't be asked again. So it is advisable to make turning notifications on a menu item (or configuration setting) so that you only send a message (and therefore ask for permission) after they have indicated they want this feature turned on.

    You can send a notification to the browser at any time by calling the p_web.DisplayNotification method.

    p_web.DisplayNotification Procedure(String pId, String pTitle, String pBody, String pIcon)

    The method takes four parameters.
    pId: Each message should have an ID string. Messages with the same ID will replace each other in the user's message list. In other words, if you are sending the same message, or an updated version of the message, use the same ID.
    pTitle, pBody : The title and body of the notification.
    pIcon: a graphic file to display on the notification.

    Web Sockets

    In normal circumstances the call to DisplayNotification above will add a small script to the current server-response-to-the-browser. This script will be executed once the whole response has been received by the browser.

    However if Web Socket support in the application is on [1], and the WebSocket Listener has been activated on your web page[2], then calls to DisplayNotification will be sent to the browser immediately via the web socket connection. This approach does not rely on a completed response to the browser.

    [1] WebServer procedure, NetTalk Extension, Settings / Scripts tab, Web Socket script on.

    [2] On a specific page, browse, form or whatever call
    p_web.NotificationSocketsOn()
    If you want this to apply to every page in the application you can add this to the Header or Footer procedure.

    Service Worker and Actions

    If you have  a service worker for your application turned on [1] then you can add Actions to your notifications.
    Note that this feature is only available in NetTalk Apps level. Also note that this feature is currently only supported by the Chrome browser.

    Actions allow you to add one or more "buttons" to the notification. Each button has an action, a targ


    Sample Notification with Actions


    [1] Go to the Global Extensions for the application, to the Activate NetTalk Web Server extension. Go to the Apps tab, to the PWA tab. Tick on Generate ServiceWorker.js. Note that you do not need to create a complete PWA -  this feature can work independently of the app being a PWA.

    User Experience

    Some common pitfalls to avoid:
    • Don't put your website in the title or the body. Browsers include your domain in the notification so don't duplicate it.
    • Use all the information that you have available. If you send a push message because someone sent a message to a user, rather than using a title of 'New Message' and body of 'Click here to read it.' use a title of 'John just sent a new message' and set the body of the notification to part of the message.

    Device (Push) Notifications

    This implements the HTML Push API. Device Notifications happen when the user is using a mobile device (running Android or iOS) and they are not on your web site, and your application may not even be running.

    Support for Device Notifications to follow in a later build.

    Paths

    BBy default your web server is installed in a directory (the AppPath) and below this hang the Web folder, Log folder, Web\Uploads folder and so on. However in some situations you may prefer to rename some of these folders.

    Log Folder/strong>

    Default is AppPath\Log
    This can be problematic under Windows if you have installed your program into the \Program Files folder. If you've done this then the LogPath breaks Windows' rules. Setting the LogPath to the AppData folder is probably preferable in these circumstances.

    To set the logpath, in the WebServer procedure, in the NetTalk object before Init Section embed point, add some code such as the following;

    ThisWebServer.LogPath = 'c:\logs'

    Web Folder, and Web Uploads folder

    Defaults are AppPath\Web and AppPath\web\uploads respectively. However the same Windows problem that affects the Log path applies here as well. If your program accepts uploads, then writing them into the \Program Files folder can be a problem.

    You have 2 choices when moving the Uploads folder. Either move the Web folder completely (by adjusting the WebFolderPath AND UploadsPath properties) or just move the Uploads folder.

    Remember that static files can only be served if they are under the web folder, so the real question is whether you want your uploaded files to be available for download. If yes, then you need to move the whole web folder, if no, then you can afford to just move the Uploads folder.

    Because both the WebFolder, and Uploads folder are site specific, you need to alter their properties in the _SitesQueue property of the WebServer. For example;

    Get(ThisWebServer._SitesQueue,1)
    ThisWebServer._SitesQueue.Defaults.WebFolderPath = 'c:\web'
    ThisWebServer._SitesQueue.Defaults.UploadsPath = 'c:\web\uploads'
    Put(ThisWebServer._SitesQueue)


    The best place to do this is in the Init method of the web server procedure.

    Guide to WebServer Examples

    Not surprisingly there are many different ways to accomplish any given task. The NetWebServer examples are designed to cover as many of these possibilities as we can. This section describes each example in a bullet form, covering the features you can see in operation.



    horizontal rule

    bullet small1: Basic Browse and Form

    This is the simplest example. It provides a server that displays the contents of a single table, and allows you to Add, Change and Delete entries.

     Table is File Loaded.

    Table has a fixed sort order.

    Table uses “Radio” style row selection.

    Form has a forced-lookup date-entry field.

    Form has “plain” style interface.



    horizontal rule

    bullet small2: Basic with Menu

    Adds a Windows style menu to the top of the page, to navigate through the site. The example consists of 2 related files.

    Tables are File Loaded.

    Tables demonstrate client-side sorting. (click on headers).

    Tables have “Highlight” style row selection.

    Form allows date lookup or date entering.

    Alias Browse has a relational lookup on the Mailbox file.

    Forms have ‘rounded’ style interface.

    Basic form validation added.

    Alias Form has example of a “drop down” entry field.



    horizontal rule

    bullet small3: Basic with Login

    Shows the addition of Login and Password information, which the user must use to access parts of the site. (Use login of Demo, password Demo when running the application).

    Tables are Page-Loaded with Server side Sorting.

    Forms have ‘tab’ style interface.

    Greenbar effect on browse.

    Locator above browse.

    Shows browse set to “include blank rows”.

    Alias Form has example of a “lookup”.



    horizontal rule

    bullet small4: Frame with Menu

    Adds a simple Frame to the index page. Includes an Outlook style menu in the left frame.

    Forms have ‘Outlook’ style interface.

    Browse is page loaded.

    Greenbar effect on browse.

    Locator below browse.

    Shows hand-coded procedure which displays login message. Linked into LoginForm procedure as “layout tab / Source Before”. The message is set, in LoginForm, if a login fails.



    horizontal rule

    bullet small5: Basic Combined Browse And Form

    Shows a single page that has both a browse, and a Form on the same page.

    If you click on an item in the browse, then that record is loaded in the form.

    Clicking on Save in the Form refreshes the Browse.

    [ this example is not working perfectly yet ]



    horizontal rule

    bullet small6: Basic SSL

    Demonstrates a server running exclusively on a secure SSL port.

    horizontal rule

    bullet small7: Login Before Frame

    Similar to Example 4, but shows the login screen appearing before the frame appears.

    Useful for programs where absolutely the first thing the user must do is log in.

    Frame borders are suppressed.

    Range Locator. (try pressing ‘j’ in locator field.)

    Includes a picture in the browse and on the form.

    Example of using a cookie to preserve the login & password information in the browser so it is remembered for the next time the user logs in.

    horizontal rule

    bullet small8: Mixed SSL

    Demonstrates a server running on 2 ports, one serving normal pages, and another serving SSL pages.



    horizontal rule

    bullet small9: Always SSL

    Demonstrates a server running on 2 ports, a secure port and a non-secure port. All incoming requests on the non-secure port are redirected to requests on the secure port.



    horizontal rule

    bullet small10: Basic Graph

    Requires Insight Graphing

    Shows putting a graph on a window.

    horizontal rule

    bullet small11: Send Email from a Web Browser

    Shows the use of a Memory form, linked to a SendEmail function.

    The user can fill in the details for an email, but the Server program sends the email (rather than relying on the client's email setup.)

    horizontal rule

    bullet small12: User Access Control (** work in progress **)

    Requires Secwin

    Integrates Secwin functionality into a NetTalk WebServer application, including the ability to limit users from certain controls, depending on the individual, at runtime.

    horizontal rule

    bullet small13: PDF Report using C6 EE Report-To-PDF functionality

    Requires Clarion 6.x Enterprise Edition

    Demonstrates the use of the template that takes an existing Report procedure and makes it available as a PDF file to the browser

    horizontal rule

    bullet small14: PDF Report using PDF-Tools

    Requires PDF-Tools SDK

    Demonstrates the use of the template that takes an existing Report procedure and makes it available as a PDF file to the browser

    horizontal rule

    bullet small19: Select Item from one browse, then filter another

    Select a Mailbox on one browse, then the Alias browse is always filtered based on that selection.
    This example also shows setting a dynamic header on the Alias Browse.



    horizontal rule

    bullet small20: Multi-DLL ABC Example

    Shows using the web server in a multi-DLL example.  Normal Multi-DLL rules apply, but NetTalk specific settings are listed below.

    1. AllFiles.App. This is the Data DLL. (Generate all file declarations is on.)
        a) This app has the Activate NetTalk global extension added.

    2. Customers.App. This app contains one or more NetWeb procedures.
        a) Global NetTalk Extension, and Global NetTalk Web Server extension are added as normal.
        b) ALL NetWeb procedures MUST be marked as EXPORT.

    3. WebServer.App. This app contains the WebServer and WebHandler procedure, as well as one or more other NetWeb procedures.
        a) Global NetTalk Extension, and Global NetTalk Web Server extension are added as normal.
        b) On Activate NetTalk Web Server, Global Extension, Multi-DLL tab, all apps (excluding this one) with netweb procedures are listed.
        c) ALL NetWeb procedures in ALL other DLL's must be added here as EXTERNAL procedures.
             Make sure to get the prototypes right;
            Browse, Page, Source : (NetWebServerWorker p_web)
            Form: (NetWebServerWorker p_web,long p_action=0),long,proc
        d) All files used by NetWeb procedures must be generated in this app. (Typically just turn on Generate All File Declarations).

    4. MainExe.App. This is the Exe program
        a) Activate NetTalk Global Extension is added.
        b) WebServer procedure is called as desired.



    horizontal rule

    bullet small21: Browse In Form Example

    This example demonstrates the use of a Browse as a form entry field. It's the classic Invoice-LineItems relationship, where LineItems can be added, or edited when the Invoice Form is open.

    horizontal rule

    bullet small22: Relational Update Example

    Similar to Example 21, this example uses a Invoice / LineItem dictionary. In this case however there is a new field, InvoiceNumber added to the Invoice table, and the LineItems are related to the Invoice Number and not the Invoice ID.

    Because the Inv:Id field is used in the unique key it cannot be changed on the UpdateInvoice web form. However this allows the Inv:Number to be changed on the form. As the LineItems are related to the Invoice number (and not the ID) they need to change whenever the invoice number changes.

    Outwardly this example is no different to example 21 - there's nothing the programmer needs to do to make the relational updating work. The relational stuff is done for you by the template, and classes.

    horizontal rule

    bullet small23: Browse To Another Form

    In this example the Browse is on one table (Customers) but the Form is on a different table (MoreCustomers).  [ note - as at build 4.21 this example is not working yet ]

    horizontal rule

    bullet small24: Form To Form

    This example shows how to override the destination of the "Save" button to chain to a second form. Notice the URL on Save setting for the FirstForm procedure.

    horizontal rule

    bullet small25: Parent-Child Browse

    An often requested ability is to have 2 browses, on the same page, where the "child" browse updates as a row in the "parent" browse is selected. This example demonstrates this behavior.

    Notice the Children tab on the Browse Invoices procedure. This is where you set the set the BrowseLineItems procedure to be a child of the BrowseInvoices procedure. Children can be to the right, or below, the parent. Children Browses can have children of their own (demonstrated in example 31).

    Notice also the ability to have conditional filters on the LineItems browse. In this case the filter is set to a specific range if the parent is the BrowseInvoices procedure.  This feature allows browses to be re-used in different places, with different filters.

    This example also shows the ability to override the browse colors on the extension to the Web Server procedure.

    horizontal rule

    bullet small26: File Upload / Hot Fields / Logging

    This example shows how the user can upload a file to the server. In this case the expected file is a picture which will be associated with the mailbox.

    The first thing to note here is on the form. The current picture name is displayed as a Display field. The "Upload" field is NOT pre-primed with the existing name. (If it was the file would be re-uploaded on every Change.) If the upload-file field is blank when the form is Saved then the existing value is NOT overwritten.

    In addition, this example, shows how the graphic can be displayed both in the browse, and as a "Hot Field" to the right of the browse. This is done by using the NetWebSource procedure "HotImage". Notice the way HotImage is set as a Child procedure of the MailBoxes browse.

    Lastly this example has Logging enabled. Activate the logging by clicking on the "Screen & Disk" option on the main Web Server window when the program is running. Right-click on the Screen-&-Disk radio option in the Window formatter to see the various logging options that need to be set.

    horizontal rule

    bullet small27: Frame with Task Panel

    Similar to example 7, this one uses the XP Task Panel style menu on the left hand side instead of the Outlook style menu. The menu in question is in the MenuOnLeft procedure. Note that toggling between the menu styles here is as simple as changing the option on the drop-down.

    horizontal rule

    bullet small28: Buttons

    This example shows the ability to place buttons on Forms, and Browses. Currently Buttons to send Emails, and link to other screens are included. Special notice should be taken of the "Link with ID" button on the browse.

    horizontal rule

    bullet small29: Basic XML

    An example to show serving an XML page rather than a HTML page. Notice the MailBoxesXML procedure, where the page type is set to XML. This would be used primarily in cases where other programs (not browsers) need to access your data (and XML is the preferred markup).

    horizontal rule

    bullet small30: Hyperlinks

    Shows the ability to add hyperlinks to browses and forms.

    horizontal rule

    bullet small31: Accounts

    A largish demo (currently running at http://oak.capesoft.com) this example incorporates many features into a single app. Notable highlights include the use of the XP Task-Panel menu, Child browses, Dynamic Forms and so on.

    horizontal rule

    bullet small32: Error Page

    Shows how a custom error page can be embedded into the Web Server procedure.

    Tip: Resist the urge to place the name of the missing file in the error message. This can lead to a security problem known as cross-site-scripting.

    horizontal rule

    bullet small33: Drop Filter

    This example shows the use of a Drop box (on a form) to dynamically filter a browse (also on the form). See the FilterAlias NetWebForm procedure.

    horizontal rule

    bullet small34: Calculator

    This example shows dynamic fields being captured on the form, which then change the values in other fields on the form.

    The Calculator tab includes a "Calculate" button, although this doesn't actually do anything. It does give the user something to "press" though.

    The Area tab shows fields being hidden, and unhidden in real-time as the "shape" of the area is chosen.

    The Button tab shows the use of individual buttons to build up the equation. The result is calculated on the fly. The embed code here shows calling a generic routine to do the work. Notice that the Equation and Result fields are set as "Dynamic" because they are not set as Reset Fields for any of the buttons. An alternative to the last 2 lines of the hand-coded routine would be to set the Equation and Result to be Reset Fields of each button. While there's nothing exciting about a server-side calculator, this technique can be used to prevent key-logging when entering passwords etc.

    Notice the use of the Layout tab (on the template settings)  to prevent the form from "dancing" as fields are hidden and unhidden.

    horizontal rule

    bullet small35: Time Fields

    An example of capturing time as a form field. The field is set as a String with a time picture (typically @T1 or @T4). However the code interpreting the field is very forgiving. The user can enter almost any number into a time field and it will be intelligently captured. All the following are legal:
    1 ( resolves to 1:00)
    200 (resolves to 2:00)
    3am (resolves to 3:00)
    4pm (resolves to 16:00)
    5:16pm (resolves to 17:16)
    and so on.

    horizontal rule

    bullet small36: Html Editor

    Demonstrates the HTML editing control.

    horizontal rule

    bullet small37: Legacy Basic

    A basic web server built using Legacy templates, not ABC templates.

    In order for all the Web Server features to work correctly using the Legacy templates., you need to make sure that the Smart Generate feature in the Web Handler procedure is turned on.

    Web Hander procedure, Extensions, NetTalk or NetSimple Object Extension, Class Tab, Smart Generate option.


    horizontal rule

    bullet small38: Legacy Report Requires C6EE

    Similar to example 37, but with the addition of a report procedure.


    horizontal rule

    bullet small39: Example of using CapeSoft Message Box in a Web server application

    Similar to example 37, but with the addition of a report procedure.


    horizontal rule

    bullet small40: FileDownload

    This example is designed to demonstrate 2 different alternate techniques for serving "static" content from the web server.

    Serving static files from blobs

    Firstly it contains the ability to serve files from a BLOB inside a TPS file. In this example the files in web\images, web\scripts, and web\styles have been added to a simple TPS file (called BlobFile). Each record in the table contains the name of the file, and the contents of the file (in the Blob.)

    In the WebHandler procedure,  _Sendfile method, some embed code has been added that checks the Blob file before checking the disk. If the file is found in Blobfile then it is sent from there, rather than from the disk.

    This approach allows you to dispense with shipping the web folder, and sub-folders. The server will still create these folders, but they will be empty.

    Serving static files from outside the "web" directory

    By design, static files can only be served if they are below the web folder on the disk. This is a security mechanism, and should not lightly be over-ridden. However if you need to serve files from elsewhere on the disk you can. In this example 3 static PDF files can be served from the application folder, above the web folder.

    To do this a generic procedure ServeDocument has been added to the App. This procedure checks for the parameter called Name, and uses this parameter to find the file to serve. From the browse this procedure is called with an URL similar to this;

    ServeDocument?name=file1.pdf

    If you choose to override the built-in security and offer this approach to accessing static files, then you will need to add your own handcode to suitable limit what files will be served by this procedure. Failure to add code will result in any file on the server being servable.

    AddBlob utility app

    In order to make maintenance of the TPS file easier a small, windows, utility called AddBlob is also in this example folder. You will need WinEvent in order to compile it. If you don't have WinEvent then you can just run the EXE in the folder.

    This example can be called from the command line, using a parameter -r. If you do this then the files inside the blob will automatically be refreshed with the current version of the original file.

    In other words, let's say you added c:\temp\whatever.txt to your blob file. And you've set the FileName (the "ServeAs" name) to be whatever.txt. If you call AddBlob -r then the c:\temp\whatever.txt file, inside your blobfile, will be refreshed.

    horizontal rule

    bullet small41: LegacyGraph

    A simple example, which uses Insight Graphing with the Clarion ("Legacy") templates. Similar to Example 10, but for Legacy not ABC.

    horizontal rule

    bullet small42: SOAPServer (Requres XFiles version 2.86 or later)

    A very simple example of a SOAP server. An example SOAP client (as a Windows program), called client.app, is also here.

    Scenario

    In this example the client app (a windows program) passes a request-for-information to the server as an XML packet. The request asks for either Teacher or Student information. If asking for the teacher information then a password is also supplied.

    On the client side the server receives the request, and creates one of three results. Either the Teacher, or Student information which was requested, or an Error.

    SOAP Server

    The app has, apart from the Web Server procedures, only one function. This function is called GetInfo. GetInfo is based on the NetWebPage procedure template, and the Page Type is set as XML. the handling of the incoming XML packet, and the formation of the outgoing XML packet are done in embed code, using xFiles.

    The possible incoming, and outgoing structures are defined as groups. Using an xFiles object the incoming request is placed into the Request group. Then depending on the request one of the response groups is populated. the xFiles object turns the group into an XML string (Xml.XmlData), and this string is the "Page" sent to the client by the NetTalk web server.

    SOAP Client

    In this example the client uses xFiles to construct the XML packet with the SOAP wrapping, and then does a simple POST to the server. Note the URL of the post contains the name of the function (getInfo) - this is how the server knows which function to run.

    Data

    In the example data files you'll find teacher with an ID of 1 (password jake) and another with an ID of 2 (password brian). Threre are also 3 students, with numbers 1,2 and 3 respectivly.

    Tip: For more SOAP Client examples, see the examples that ship with xFiles.

    horizontal rule

    bullet small43: AccessLevels

    An example of Access Levels.

    In this example log in as
    Login: Super / Password: Super
    to have full access to the browses and forms, login as
    Login: Operator / Password: Operator
    to have limited access to some of the forms, and login as
    Login: Guest / Password: Guest
    to have read-only access to the system


    horizontal rule

    bullet small45: WScriptActiveX

    This example will only work in IE, and only if the IE security levels are set to allow ActiveX scripts for the "zone" that the server is in.

    It demonstrates using an ActiveX control, specifically the built-in WScript.NetWork control.

    In the login form, a call to the JavaScript function SendUser() is made. This function is in a file called wscript.js, which is in the scripts folder. This function uses the WScript.Network control to get the UserName and ComputerName of the client computer, and send it to the server as a session value. If you examine the log after requesting the login page in your browser, you should see the additional calls to set the Session values.

    Note: The use of ActiveX controls is clearly limited to very specific situations. Typically this approach is only useful in an environment where the browser itself is specified (IE) and the security settings on the browser can be set for your site.

    Zones: If you want this control to work, the user must place your site into a "Zone" in their browser that has a Low priority set. the attached picture for IE 7 may help;

    At this point the user will probably get a popup warning whenever the script is invoked. To turn off this warning, click on the Custom Level button (as seen in the picture above), and set the ActiveX settings from "prompt" to "enable".

    My thanks to Bram Klootwijk who assisted with the creation of this example and did the research to make it work.

    horizontal rule

    bullet small46: Timers

    This example shows the use of Timers as they are applied to web pages.

    From the index page, click on the link "Page with Progress". This will show a very simple text progress percentage. This case uses a NetWebSource with a timer in the ProgressSoFar procedure.

    The MailBoxForControl procedure includes a Display Form Field that is updated on a timer. This uses the TimeClock NetWebSource procedure.

    horizontal rule

    bullet small47: Pages

    This example shows how to embed a browse in a static htm page, and also how to embed a form in a static htm page.

    The default page for the site is set as 'index.htm' which is a static htm page in the web folder, rather than the normal case where the page is a procedure in the application. This index.htm page contains an embedded session variable, as well as an embedded browse procedure. It also has an embedded NetWebSource procedure, the footer.

    The browse calls a static page, form.htm, instead of the form procedure. Form.htm is also in the web folder. This page has both the form, and the header embedded on it.

    horizontal rule

    bullet small48: Tagging

    This example shows the EIP on a browse, where the EIP is working on a secondary table. As the user tags the records in the browse, the state of the tags is saved into a table. (In the example a TPS table has been used, but if you have the In-Memory driver, then this would make a very good driver for this table.) While nothing is actually done with the tagged records, obviously you can use the Tagged table later on in your code to "do something" with the tagged records.

    In normal (primary file) EIP the changes are saved automatically as they are made. When the changes are made on a secondary table (in this case a table containing the tags themselves) hand-code must be added to fetch, modify and save the appropriate secondary record.

    In addition this example contains some embed code in the WebServer procedure that shows custom behavior when a session is automatically deleted.

    horizontal rule

    bullet small49: Locators

    The goal of this example is show the variety of ways that locators can be configured for a browse.

    Typically these settings are set at design time, but the programmer, however as this example demonstrates it's also possible to set the settings at runtime - thus allowing the user to select the locator they prefer.

    horizontal rule

    bullet small50: MultiRow

    Most browses are single line affairs. However this example uses multi-line techniques, and challenges the very essence of what we consider a browse to be.

    horizontal rule

    bullet small53: Validation

    This example demonstrates the use of dictionary Validation, and local Form Field validation.

    In this example all the fields on the MailBoxes browse are set to Validate Immediately creating a highly responsive form which insists on the correct data being entered. Visual clues including highlighted entry fields, popup messages, and comments are all included automatically.

    The NickName field shows how hand-coded validation can also be applied to the field. In this case the field has Validate Immediately setting on. In addition some source code has been added to the Server Code button on the Client-Side tab. The code contains both some validation (an arbitrary nickname length of 4 characters is enforced) and some "clean up" code which "corrects" the nickname to a suitable case.

    Note that in the case where the validation is hand-coded the Loc:Invalid, and Loc:Alert variables are set appropriately.



    horizontal rule

    bullet small54: Excel

    This example demonstrates exporting to Excel from inside a web server.

    NOTE: This example requires Office Inside in order to compile, as it uses OfficeInside to create the Excel file. Also Excel must be installed on the same machine as the server.



    horizontal rule

    bullet small55: Services

    This example demonstrates adding SelfService to a Web server application.

    NOTE: This example requires SelfService in order to compile.

    horizontal rule

    bullet small56: Menus

    This example demonstrates various menus that are available. Use this app to experiment with different menu options and settings.

    horizontal rule

    bullet small57: Tabs

    This example demonstrates the various form types (also known as Tab Types) that are available.

    horizontal rule

    bullet small58: Php

    This example demonstrates the use of Php pages combined with NetTalk pages. Not that this example (and PHP support in general requires OddJob and StringTheory). For more about PHP see the notes above.

    horizontal rule

    bullet small59: MultiSite

    This app is more than an example, it is the source for the Host exe, the program that allows multiple web sites to share the same IP address and Port number. Compiling, and using this app is described in a different document here.

    horizontal rule

    bullet small60: CPCSReport

    This example demonstrates the use of the web server with existing (or new) CPCS Report procedures.
    CPCS

    [End of this document]
    Return to NetTalk Documentation Index
